Calibrated Noise Sources
NC3000 Series
The NC3000 Series calibrated coaxial AWGN sources are well suited for receiver testing, noise figure measurements, or applications that require broadband noise and fast switching times. Several models include output isolators, and voltage regulators that provide excellent stability over varying temperature and voltage ranges. The NC3000 Series includes the NC3100 units with 15 dB ENR output for noise-figure meters, and the NC3200 Series high-output noise sources with outputs between 26 and 35 dB ENR for radar and satellite communications system testing.
Key Features
Models
Options
Applications
Specifications
Noise Output Rise and Fall Times
VSWR
Noise Output Variation
Input Power
Noise Output
Less than 1 µs
Less than 3:1
Temperature Less than 0.01 dB/°C; Voltage -55° to +85°C
+28 VDC 20 mA typical
23 to 27 dB ENR
Features & Benefits
- Excellent temperature and voltage stability
- Units for noise figure meters feature 15.5-dB ± 0.75 dB ENR output
- High-output units for radar and satellite communications system testing feature output between 26 and 35 dB ± 1 dB ENR

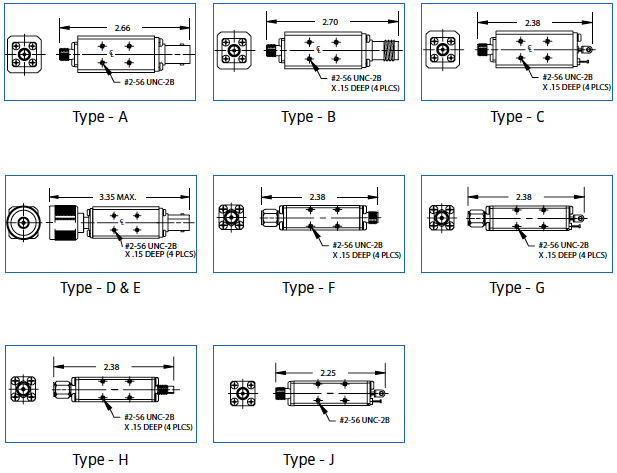

| 1 | Packages A, B, C, F, G, H, J can be supplied with threaded mounting holes |
| 2 | Alternate sex of output connector |
| 3 | +15 VDC input voltage (Not available on all sources, consult factory) |
| 4 | +28 VDC regulation, stabilized output ± 2 V variation (Consult factory for package dimensions) |
- Radar warning receivers (RWR)
- Built-in test equipment (BITE)
- Military aircraft
- Automotive Radar
- Ultra-low Latency Wireless Backhaul
- 802.11ad High-Speed Wi-Fi
