Mismatch Airline Series

Close
VNA Calibration Standard

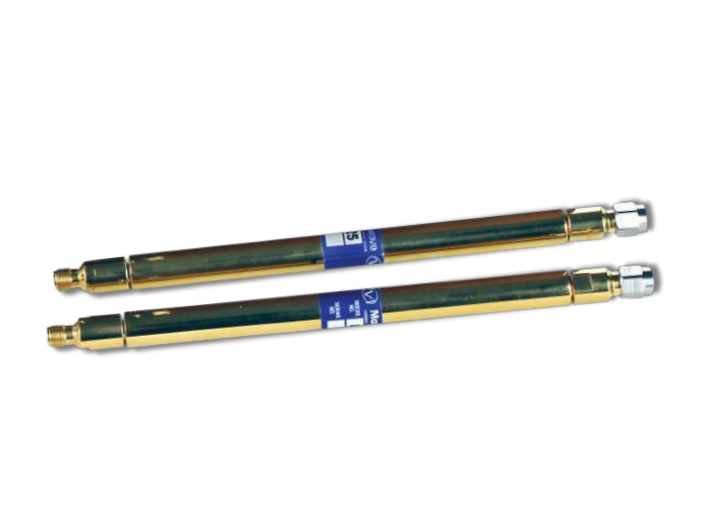

Mismatch Airline Series

Maury mismatch airlines have been designed as verification standards to be used in VNA calibration validation. Each mismatch airline is provided with factory S-parameters data that can be compared with user-measured S-parameters for VNA calibration validation. Measurement uncertainty is also provided, and uncertainty boundaries can be used for definitive calibration validation when used in conjunction with MT940B Insight Real-Time Uncertainty Add-On.

Request a quoteRequest a demo

Datasheet

Specifications

Frequency Range

Impedance

DC to 50 GHz

25 and 75 ohm



Features & Benefits

  • Calibration-grade metrology standards
  • Used for VNA calibration and/or calibration validation

Filters

Connector 1

Connector 2

Frequency Range (GHz)

Gender 1

Gender 2

Offset Length (cm)

Length (cm)

Name Connector 1Connector 2Frequency Range (GHz)Gender 1Gender 2Offset Length (cm)Length (cm)
2503H75 Type NType NDC-18MaleFemale6.604-
2603F75 7mm7mmDC-18FemaleFemale5.996-
7942C25 2.4mm2.4mmDC-50MaleFemale4.11-
8042C25 3.5mm3.5mmDC-26.5MaleFemale14.99-
8776C25 2.92mm2.92mmDC-40MaleFemale-14.99
  • Calibration-grade metrology standards
  • Used for VNA calibration and/or calibration validation
Discover more

Related Products

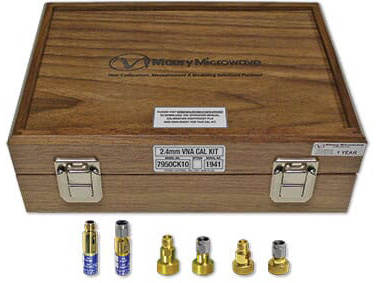

Calibration Kits Series

Learn more

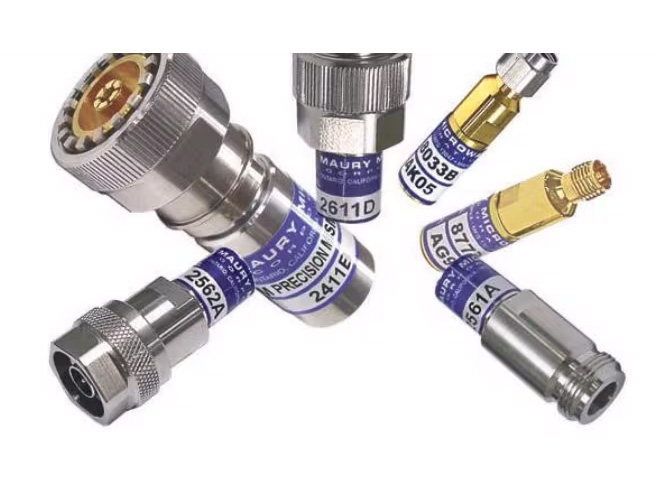

Mismatch Load Series
