VNA Calibration Standard

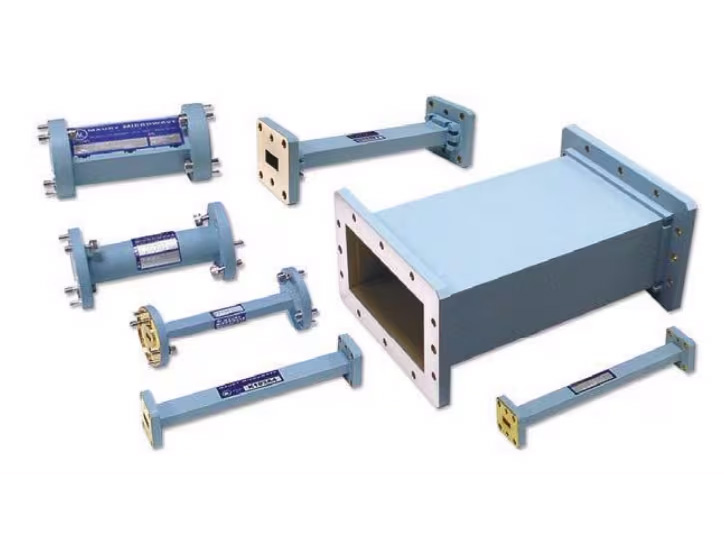

Waveguide Section Series

Precision waveguide sections are a useful component in the VNA calibration validation process, and can also be used as sample holders for material measurements.

Request a quoteRequest a demo

Datasheet

Specifications

Frequency Range

2.6 to 50 GHz



Features & Benefits

  • Calibration-grade metrology standards
  • Used for VNA calibration and/or calibration validation

Filters

Connector 1

Frequency Range (GHz)

Length (cm)

Name Connector 1Frequency Range (GHz)Length (cm)
C103C5 WR1375.85-8.212.7
C322B0.539 WR1375.85-8.21.3691
E102G5 WR2293.3-4.912.7
E322B0.9468 WR2293.3-4.92.4079
F102C5 WR1594.9-7.512.7
F322B0.641 WR1594.9-7.51.6307
G102C5 WR1873.95-5.8512.7
G322B0.807 WR1873.95-5.852.0479
H103A5 WR1127.05-1012.7
H322B0.447 WR1127.05-101.1354
J106B1 WR2233-505.6
J322B0.0946 WR2233-500.2403
K103A4 WR4218-26.510.2
K322B0.175 WR4218-26.50.4445
M103A5 WR7510-1512.7
M322B0.311 WR7510-150.7899
N102F4 WR5115-2210.2
N322B0.209 WR5115-220.5309
P103A5 WR6212.4-1812.7
P322B0.253 WR6212.4-180.6426
Q106D WR3422-3310.2
Q322B0.1418 WR3422-330.3601
S102C5 WR2842.6-3.9512.7
S322B1.198 WR2842.6-3.953.0429
U103A4 WR2826.5-4010.2
U322B0.118 WR2826.5-400.2997
X103A5 WR908.2-12.412.7
X322B0.382 WR908.2-12.40.9703
