Verification Kits Series

VNA Verification Kit

Verification Kits Series

Characterized Device (CD) Calibration Verification Kits are designed for 1-port and 2-port VNA calibration validation for well-matched and mismatched DUTs. Each kit comes with individually characterized verification standards and is used for calibration validation by comparing the S-parameters of the appropriate verification standard measured by the user and the S-parameters measured at the factory. When combined with Insight™, users will be able to use overlapping uncertainty boundaries to validate a VNA calibration with increased confidence. Verification kits are available with Type N, 7mm, 3.5mm, 2.92mm and 2.4mm connectors.

Request a quote Request a demo

Datasheet

Key Features

Models

Specifications

Frequency Range

Measurement Range

RF Channel Video Bandwidth

5 MHz to 50GHz

1- and 2-Port

Included

Features & Benefits

S-parameters comparison of user-characterized and factory-characterized verification standards
S-parameters comparison of user-characterized and factory-characterized verification standards with measurement uncertainty boundaries

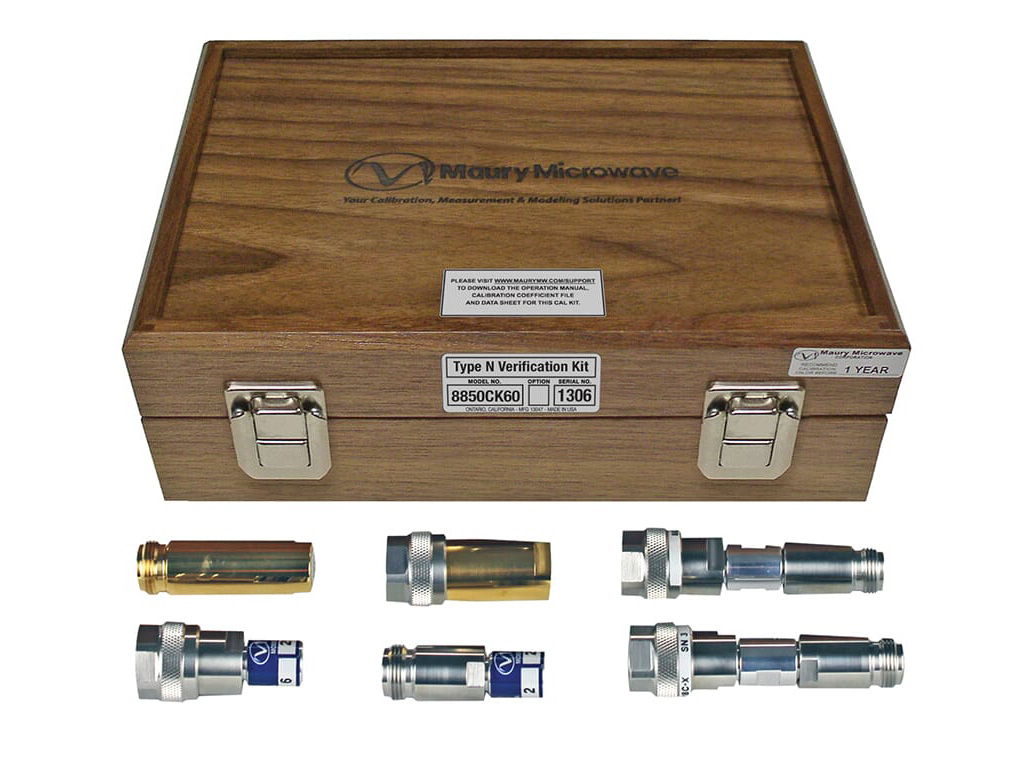

Includes beaded airline, mismatch airline, offset shorts and fixed loads

Name	Characterized Uncertainty	Connector 1	Frequency Range (GHz)
2650CK60	Yes	7mm	0.05-18
7950CK60	Yes	2.4mm	0.05-50
8050CK60	Yes	3.5mm	0.05-26.5
8770CK60	Yes	2.92mm	0.05-40
8850CK60	Yes	Type N	0.05-18
