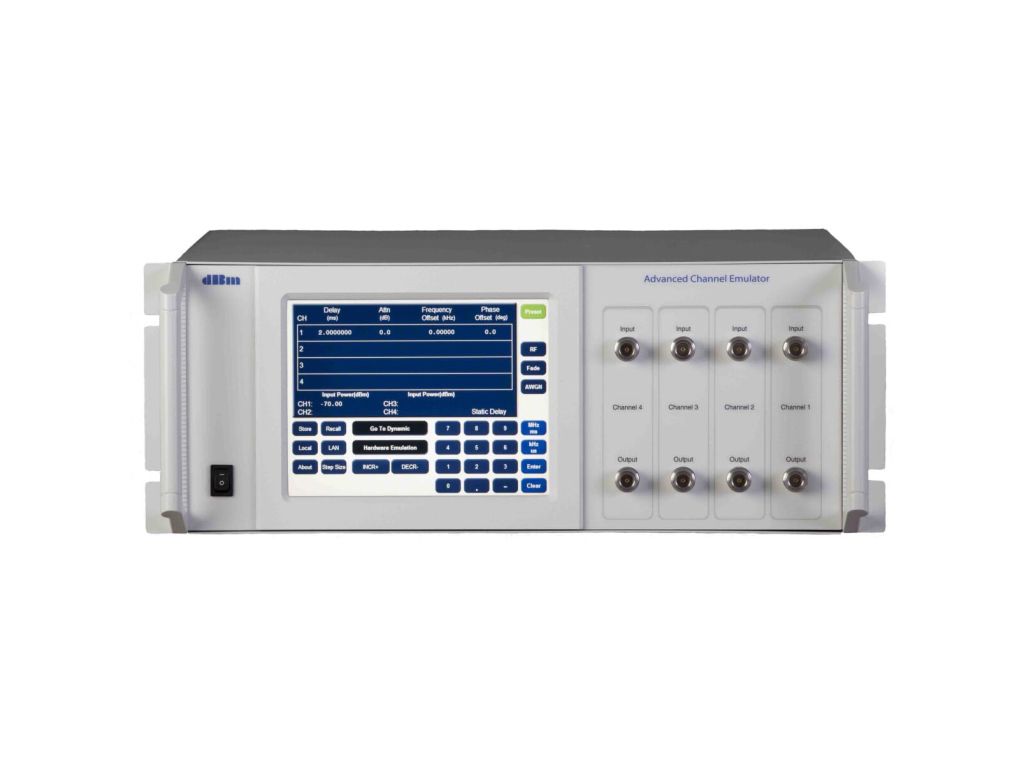

Key Features
Models
ACE Client
SATGEN
STK Plugin
Specifications
No. of Channels
Inst. Bandwidth
Typ. Noise Floor
Frequency Offset
Attenuation
Delay Range
1, 2, 3 or 4
600 MHz
-141 dBm/Hz
+/- 6.0 MHz
0 to 70 dB
0.007 - 700 ms
Features & Benefits
- 600 MHz of instantaneous bandwidth per channel
- Timing synchronization up to 16 channels
- Link Emulation including:
- Phase continuous delay, Doppler, and attenuation changes
- AWGN and Eb/No
- 12 tap (path) multipath fading with Rayleigh, Rician & CW. Angle of Arrival (AOA), k-factor, and correlation controls
- RF frequency agile up/down converters
- Payload Emulation including:
- IMUX/OMUX amplitude and group delay distortion
- Amplifier Compression (AM/AM and AM/PM)
- Phase Noise
- Static and dynamic link emulation
- Ephemeris data generation using SATGEN
- Remote instrument control through ACEClient application
Specifications
Operating System
Minimum Memory
Windows XP or 7
512 MB
Features & Benefits
- Remote control of all ACE features
- Signal capture before and after impairments
- Intuitive wizards to control channel impairments:
- 128-tap FIR filter
- AM/AM and AM/PM distortion
- Phase Noise
- Ephemeris data generation using SATGEN
- Timing synchronization up to 16 channels
- Time-domain visualization of I and Q signal components
- Convenient ACE impairment file management
Specifications
Operating System
Minimum Memory
Windows XP or 7
512 MB
Features & Benefits
- Automatic generation of ephemeris data for up to 4 channels with up to 8 transceivers in each channel.
- New sophisticated path loss model includes:
- Atmospheric gas losses as a function of frequency
- Temperature
- Humidity
- Free space losses
- Transceiver types:
- Fixed earth terminals
- Ground vehicles
- Ships
- Aircraft
- Files generated for:
- Delay
- Doppler
- Path loss
