MT1000-MT2000 Series

Close
Active Tuners

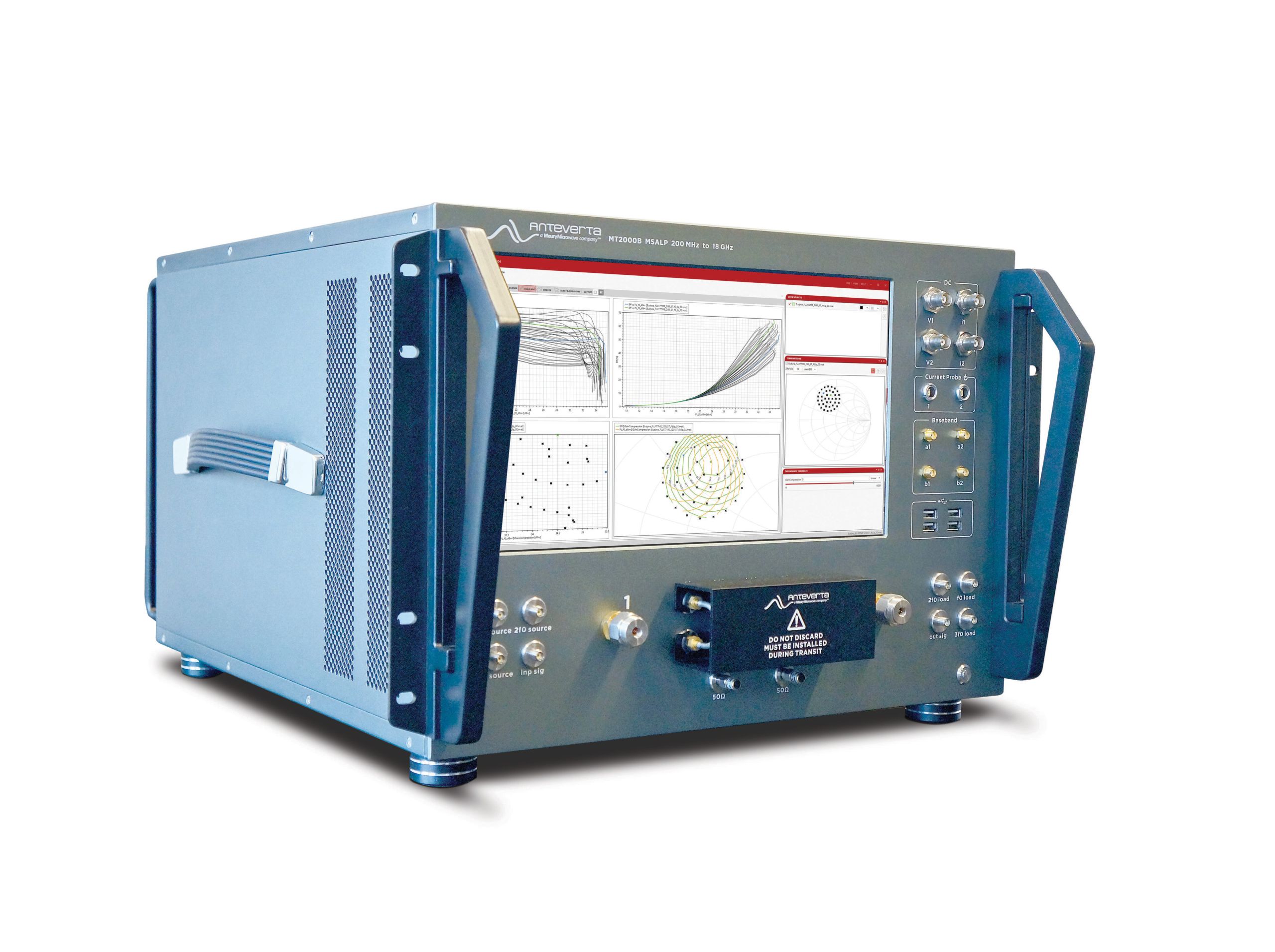

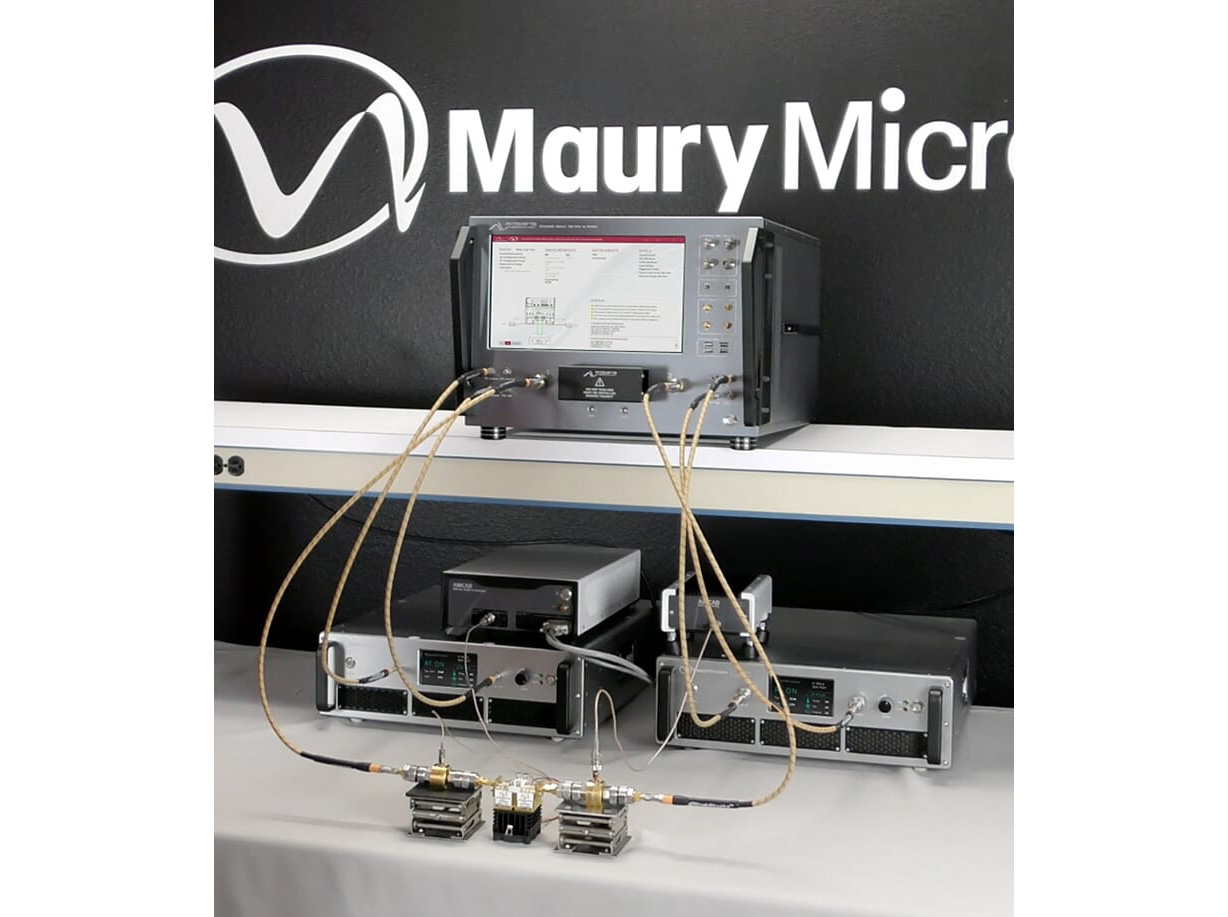

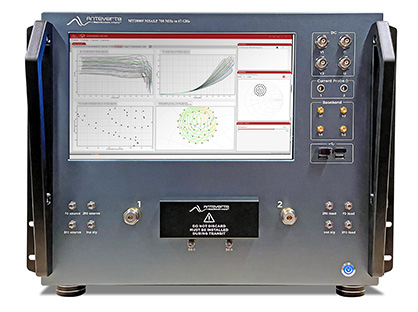

MT1000-MT2000 Series

The MT1000 and MT2000 are turnkey one-box load pull solutions that replace the functions typically performed by passive fundamental and harmonic impedance tuners, VNAs, NVNAs, analog signal generators, vector signal generators, vector signal analyzers and oscilloscopes, and add the capabilities of high-speed load pull measurements and wideband impedance control for modulated signals. By combining multiple bench setups into a single box, offering unrivaled load pull speeds, and maximizing smith chart coverage, Maury’s MT2000 is a powerhouse for device characterization, validation nonlinear compact models and extracting nonlinear behavioral models.

Request a quoteRequest a demo

Datasheet

Specifications

Frequency Range

Bandwidth

Dynamic Range

Measurement Speed

Harmonic Control

1 MHz to 67 GHz

100 MHz to 1000 MHz

60 dB

100/1000 pts/s

Fo/2Fo/3Fo



Features & Benefits

  • Single-tone, Pulsed, and Time-Domain NVNA measurements
  • Up to 1000 impedance/power states per minute
  • Maximum Smith chart coverage
  • Modulation Bandwidth up to 1000 MHz
  • Using ACPR and EVM measurement data in the design of wideband PA circuits
  • Improve PA linearity based on controlled baseband terminations
  • Reduce time-to market due to faster measurement speeds
  • Compatible with 1-port and 2-port DUTs

Filters

Detection Dynamic Range(dB)

Frequency Range (GHz)

Modulation Bandwidth (MHz)

Number of Tuning Loops

Power Handling (CW, W)

Pulse Width (Minimum)

Name Detection Dynamic Range(dB)Frequency Range (GHz)Modulation Bandwidth (MHz)Number of Tuning LoopsPower Handling (CW, W)Pulse Width (Minimum)
MT1000A2 800.3-6–21002000 ns
MT1000B2 800.2-18–21002000 ns
MT1000B3 800.2-18–31002000 ns
MT1000B4 800.2-18–41002000 ns
MT1000B5 800.2-18–51002000 ns
MT1000B6 800.2-18–61002000 ns
MT1000E2 800.7-40–2202000 ns
MT1000E3 800.7-40–3202000 ns
MT1000E4 800.7-40–4202000 ns
MT1000E5 800.7-40–5202000 ns
MT1000E6 800.7-40–6202000 ns
MT1000F2 800.7-67–2202000 ns
MT1000F4 800.7-67–4202000 ns
MT1000F5 800.7-67–5202000 ns
MT1000F6 800.7-67–6202000 ns
MT1000HF2 800.03-2–2502000 ns
MT1000HF4 800.03-2–4502000 ns
MT2000A2-100 800.3-61002100200 ns
MT2000A2-1000 800.3-610002100200 ns
MT2000A2-200 800.3-62002100200 ns
MT2000A2-500 800.3-65002100200 ns
MT2000B2-100 800.2-181002100200 ns
MT2000B2-1000 800.2-1810002100200 ns
MT2000B2-200 800.2-182002100200 ns
MT2000B2-500 800.2-185002100200 ns
MT2000B3-100 800.2-181003100200 ns
MT2000B3-1000 800.2-1810003100200 ns
MT2000B3-200 800.2-182003100200 ns
MT2000B3-500 800.2-185003100200 ns
MT2000B4-100 800.2-181004100200 ns
MT2000B4-1000 800.2-1810004100200 ns
MT2000B4-200 800.2-182004100200 ns
MT2000B4-500 800.2-185004100200 ns
MT2000B5-100 800.2-181005100200 ns
MT2000B5-200 800.2-182005100200 ns
MT2000B5-500 800.2-185005100200 ns
MT2000B6-100 800.2-181006100200 ns
MT2000B6-200 800.2-182006100200 ns
MT2000B6-500 800.2-185006100200 ns
MT2000E2-100 800.7-401002100200 ns
MT2000E2-1000 800.7-401000220200 ns
MT2000E2-200 800.7-40200220200 ns
MT2000E2-500 800.7-40500220200 ns
MT2000E3-100 800.7-40100320200 ns
MT2000E3-1000 800.7-401000320200 ns
MT2000E3-200 800.7-40200320200 ns
MT2000E3-500 800.7-40500320200 ns
MT2000E4-100 800.7-40100420200 ns
MT2000E4-1000 800.7-401000420200 ns
MT2000E4-200 800.7-40200420200 ns
MT2000E4-500 800.7-40500420200 ns
MT2000E5-100 800.7-40100520200 ns
MT2000E5-200 800.7-40200520200 ns
MT2000E5-500 800.7-40500520200 ns
MT2000E6-100 800.7-40100620200 ns
MT2000E6-200 800.7-40200620200 ns
MT2000E6-500 800.7-40500620200 ns
MT2000F2-1000 800.7-671000220200 ns
MT2000F2-500 800.7-67500220200 ns
MT2000F4-1000 800.7-671000420200 ns
MT2000F4-500 800.7-67500420200 ns
MT2000F5-500 800.7-67500520200 ns
MT2000F6-500 800.7-67500620200 ns
MT2000HF2-120 800.03-2120250200 ns
MT2000HF2-240 800.03-2240250200 ns
MT2000HF2-60 800.03-260250200 ns
MT2000HF4-120 800.03-2120450200 ns
MT2000HF4-240 800.03-2240450200 ns
MT2000HF4-60 800.03-260450200 ns
Discover more

Related Products

Automated Tuner Series

Learn more

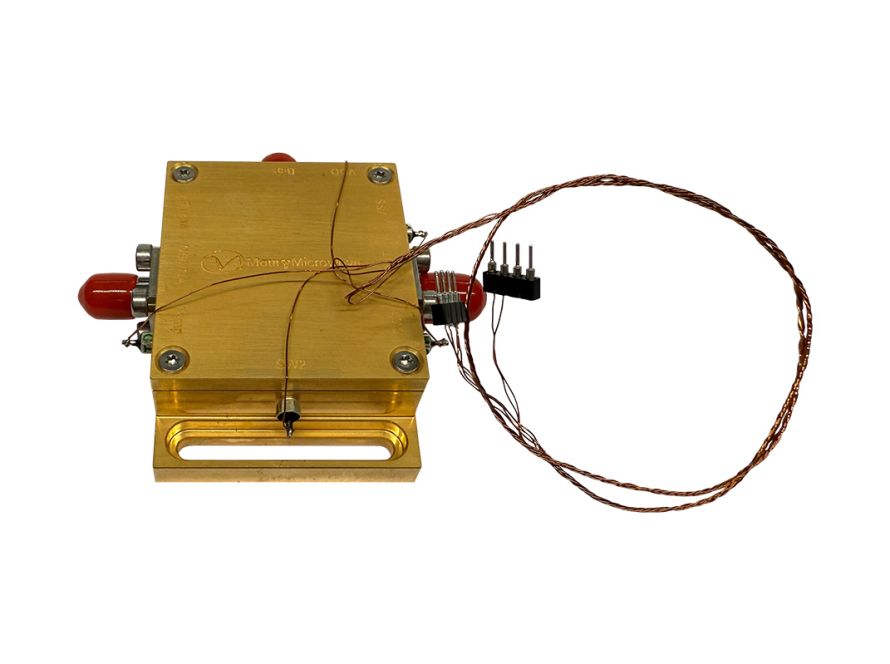

Cryogenic Impedance Tuner Series

Learn more

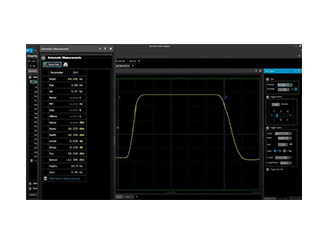

Firmware & Utilities
