Manual Tuner

Manual Tuner Series

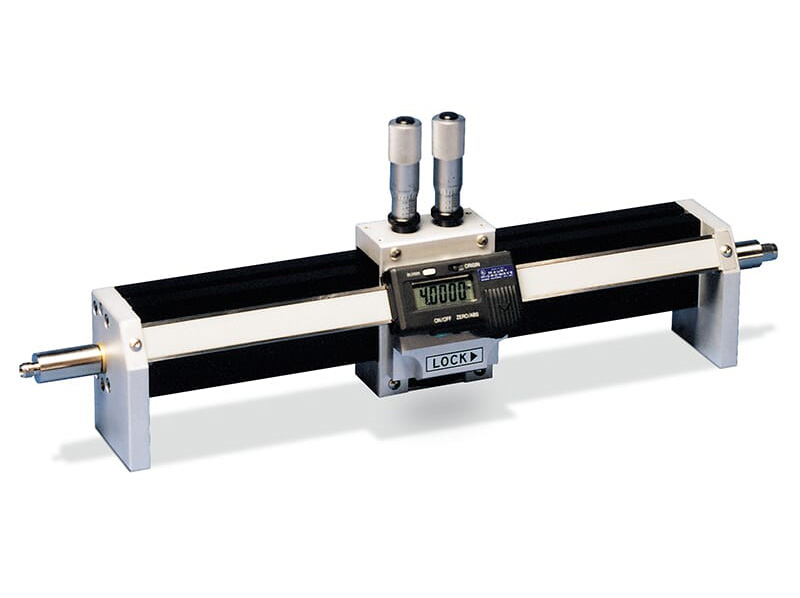

Based on precision slide screw technology, Maury’s manual tuners offers great positional repeatability with its LCD readout for carriage position and high matching range utilizing two probes to maintain performance across the band. Our manual tuners are ideal for use as a variable impedance source for applications such as device characterization or for maximizing power transfer between a generator and a load.

Request a quoteRequest a demo

Datasheet

Specifications

Frequency Range

Matching Range

Power Handling

0.4 MHz to 50 GHz

up to 25:1

up to 250 CW/2.5 kW PEP



Features & Benefits

  • Slab-line Transmission Structure
  • Low and High Frequency Probes for Improved Matching
    Characteristics
  • LCD Readout for Carriage Position
  • Micrometer for repeatable probe positioning
  • Easy to Use
