Multiplexer Series

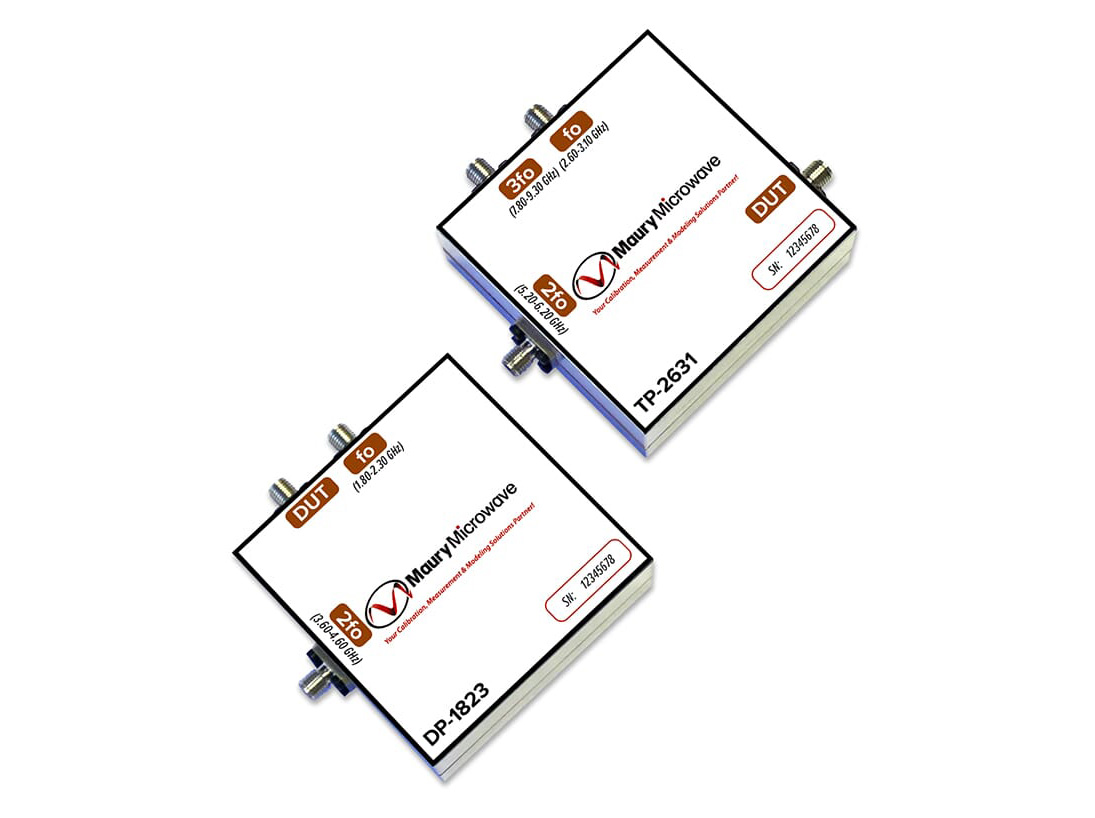

Maury’s line of diplexers (DP-series) and triplexers (TP-series) are designed for applications which require combining/ splitting signals at or around harmonic frequencies (nFo) and are connectorized for design-in and test and measurement applications. DP-series diplexers are designed using low-pass and high-pass filters and pass bias between the low-frequency (or Fo) port and the common (or DUT) port. TP-series triplexers are designed using low-pass, bandpass and high-pass filters and pass bias between the low-frequency (or Fo) port and the common (or DUT) port.

Request a quote Request a demo

Datasheet

Key Features

Models

Specifications

Frequency Range

Harmonics

Insertion Loss

Power Rating @ f0 CW

0.68 GHz to 10 GHz fundamental

up to 3 harmonics

0.4 to 0.8 dB

20W to 100W

Features & Benefits

Low insertion loss between f0 and common ports
Ideal for passive, active, and hybrid-active multi-harmonic load pull systems.
High power handling capabilities
High isolation between ports
Allows to pass bias between the fundamental and common port
Wide selection of frequency bands

Name	Connector 1	Connector 2	Connector 3	Frequency Range (GHz)	Gender 1	Gender 2	Gender 3	Insertion Loss (dB)	Power Handling (CW, W)
DP-06810	SMA	SMA	-	0.68-1	Female	Female	-	0.5	100
DP-1015	2.92mm	2.92mm	-	10-15	Female	Female	-	0.9	20
DP-1220	SMA	SMA	-	1.2-2	Female	Female	-	0.4	100
DP-1520	2.92mm	2.92mm	-	15-20	Female	Female	-	0.9	20
DP-1823	SMA	SMA	-	1.8-2.3	Female	Female	-	0.4	100
DP-2232	SMA	SMA	-	2.2-2.3	Female	Female	-	0.4	100
DP-2942	SMA	SMA	-	2.9-4.2	Female	Female	-	0.8	100
DP-3957	SMA	SMA	-	3.9-5.7	Female	Female	-	0.4	100
DP-5070	2.92mm	2.92mm	-	5-7	Female	Female	-	0.5	50
DP-7090	2.92mm	2.92mm	-	7-9	Female	Female	-	0.5	50
DP-8010	2.92mm	2.92mm	-	8-10	Female	Female	-	0.6	40
TP-08710	SMA	SMA	SMA	0.87-1	Female	Female	Female	0.8	100
TP-1822	SMA	SMA	SMA	1.8-2.2	Female	Female	Female	0.4	100
TP-2226	SMA	SMA	SMA	2.2-2.65	Female	Female	Female	0.3	100
TP-2631	SMA	SMA	SMA	2.6-3.1	Female	Female	Female	0.8	100
TP-3040	2.92mm	2.92mm	2.92mm	3-4	Female	Female	Female	0.5	50
TP-4050	2.92mm	2.92mm	2.92mm	4-5	Female	Female	Female	0.5	50
TP-5060	2.92mm	2.92mm	2.92mm	5-6	Female	Female	Female	0.5	20
