Torque Wrench Series

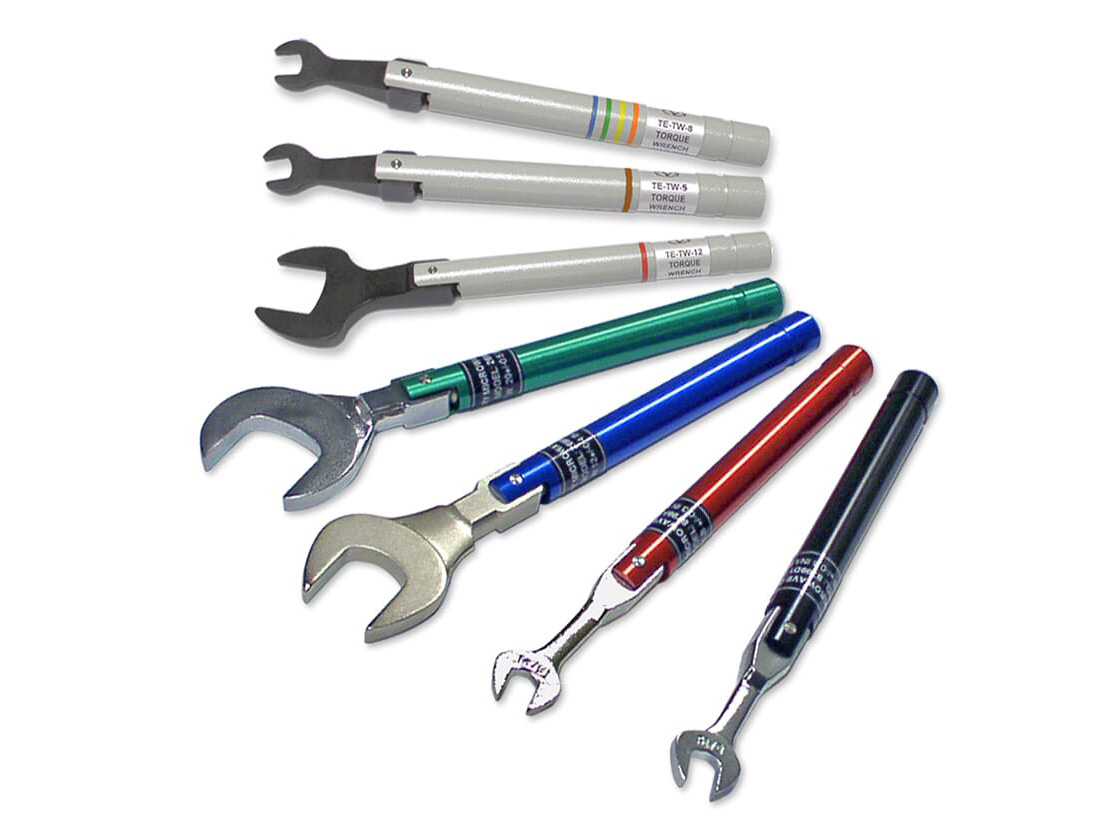

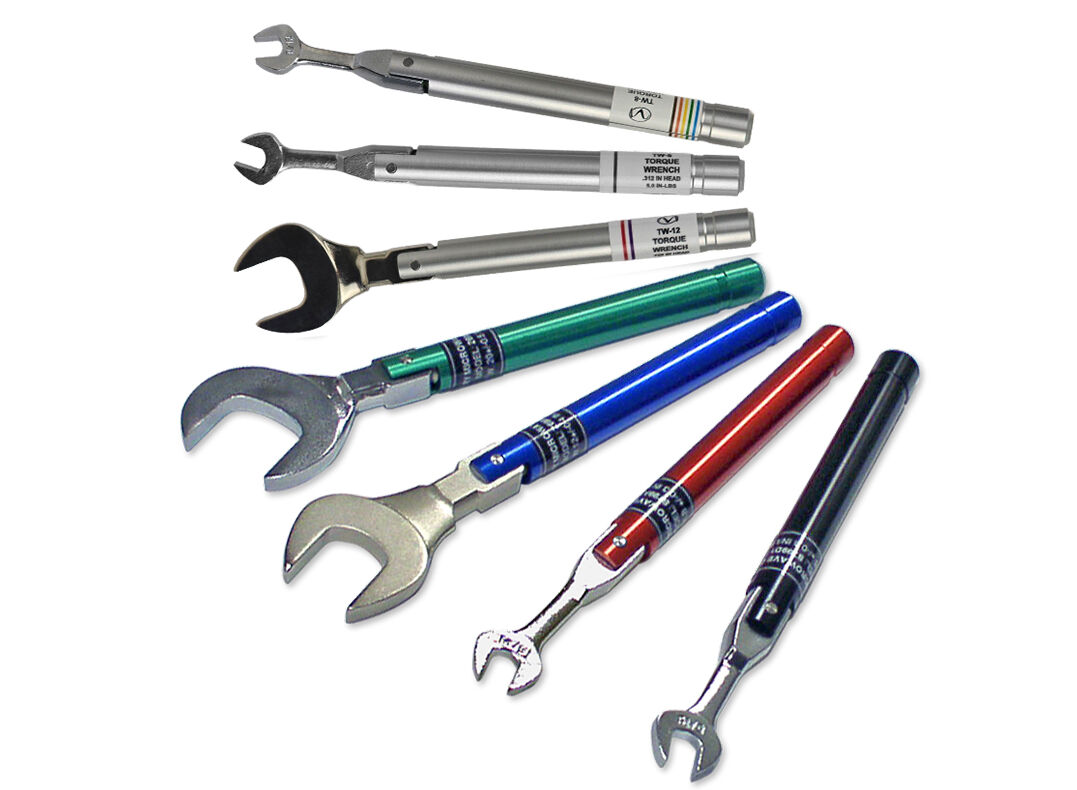

Torque wrenches (metrology-series and TW-series) are recommended for tightening coaxial connectors in order to obtain optimum repeatability and prolong connector life. They employ a “break” design so it is impossible to over-torque a coupled junction, and torque can be applied in either direction. Each Maury torque wrench is factory preset to the proper in/lbs for tightening its coaxial connector type, and the color-coded handles (metrology-series) and color-coded bands (TW-series) make it easy to select the correct wrench from your toolbox at a glance. Torque wrenches are available in 5 in/lbs for SMA, 8 in/lbs for SMA, 3.5mm, 2.92mm, 2.4mm, 1.85mm, and 12 in/lbs for 7mm, Type N and NMD-style connectors.

Request a quote Request a demo

Datasheet

Brochure

Key Features

Models

Specifications

Metrology Wrenches

TW-Series Wrenches

Design

Connections

± 5%

± 10%

Break

Features & Benefits

Obtain optimum repeatability and prolong connector life
Employs a “break design” to prevent over-torquing
Factory preset to specific torque values
Metrology wrenches have color-coded handles for easy identification
TW-series wrenches are color-coded and part of the ColorConnect product family

Name	Connector Compatability	Torque (in/lbs)	Wrench Size (in)
2698C2	7mm, LPC7, Type N, NMD3.5, NMD2.92, NMD2.4	12 +/- 0.8	0.750 hex
2698G1	TNC, MPC6	12 +/- 0.8	0.562 hex
8799A1	3.5mm, MPC3, 2.92mm, 2.4mm, 1.85mm	8 +/- 0.5	0.312 hex
8799D1	SMA, OSM	5 +/- 0.3	0.312 hex
TW-12	Type N	12 +/- 1.2	0.750 hex
TW-5	SMA	5 +/- 0.5	0.312 hex
TW-8	3.5mm, 2.92mm, 2.4mm, 1.85mm	8 +/- 0.8	0.312 hex
