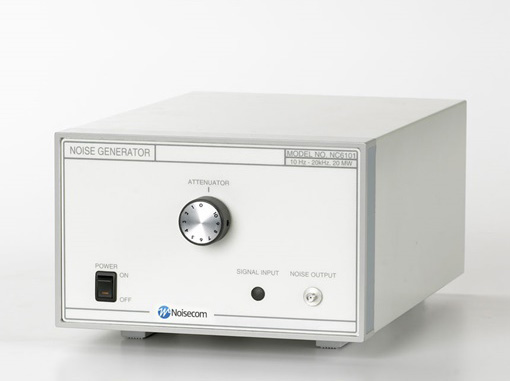

Manual Noise Generators
NC6000A-8000A Series
The NC6000A and NC8000A Series instruments are designed for general-purpose noise applications on the bench, or in a rack test station. The manual controls make it simple to operate and reduce test set up time. Standard units can be modified for specific customer requirements. Please consult the factory for pricing and availability of these requests.
Key Features
Models
Options
Specifications
Output
Attenuator Range
Impedance
Typical VSWR
White Gaussian noise up to 26.5 GHz
0 to 10 dB in 1 dB steps
50 Ohms
1.5:1
Features & Benefits
- Additive white Gaussian noise
- Integrated amplifier
- Manual attenuator
- NC6000A -BER testing, and SNR applications
- NC8000A – Secure signal jamming
- Military Applications
- Custom configurations available (consult factory)
- NC6/NC8opt01: 100 dB attenuator in 10 dB steps*
- NC6/NC8opt02: 110 dB attenuator in 1 dB steps (two attenuators)**
- NC6/NC8opt03: Line power 230 VAC, 50 Hz
- NC6/NC8opt04: Combiner for input signal (6dB loss in noise and signal paths)
- NC6opt06: 19 in. Rack mount (NC6000 only); 17 in. wide by 3.5 in. high by 13 in. deep
- NC6/NC8opt07: N female output connector
- NC6/NC8opt08: BNC female output connector
- NC6/NC8opt09: 75-ohm output impedance (6 dB loss)
- NC6/NC8opt10: Additional 1 dB attenuator in 0.1 dB steps***
- NC6/NC8opt11: Custom frequency, power, or flatness requirement****
* 60 dB for NC6218A, and NC6226A
** 69 dB for NC6218A, and NC6226A
*** N/A for NC6124, NC6218, and NC6126
**** Consult factory for pricing and availability
