Compact Signal Generators
SGX1000 Series

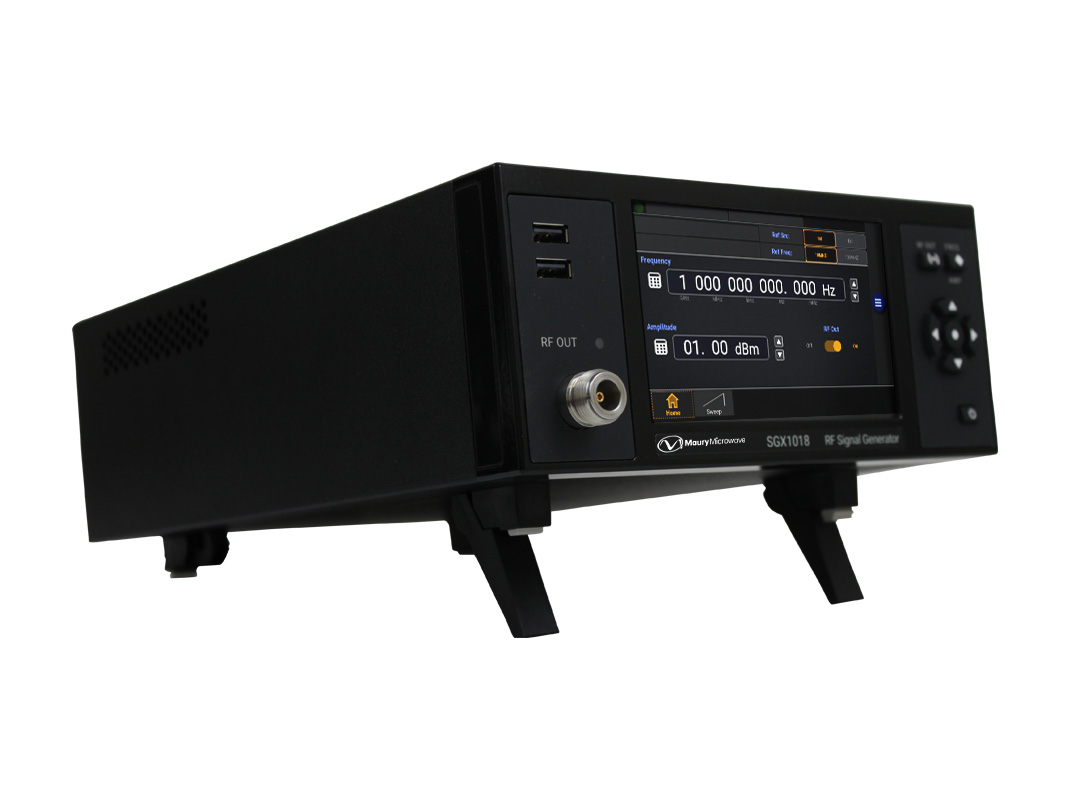

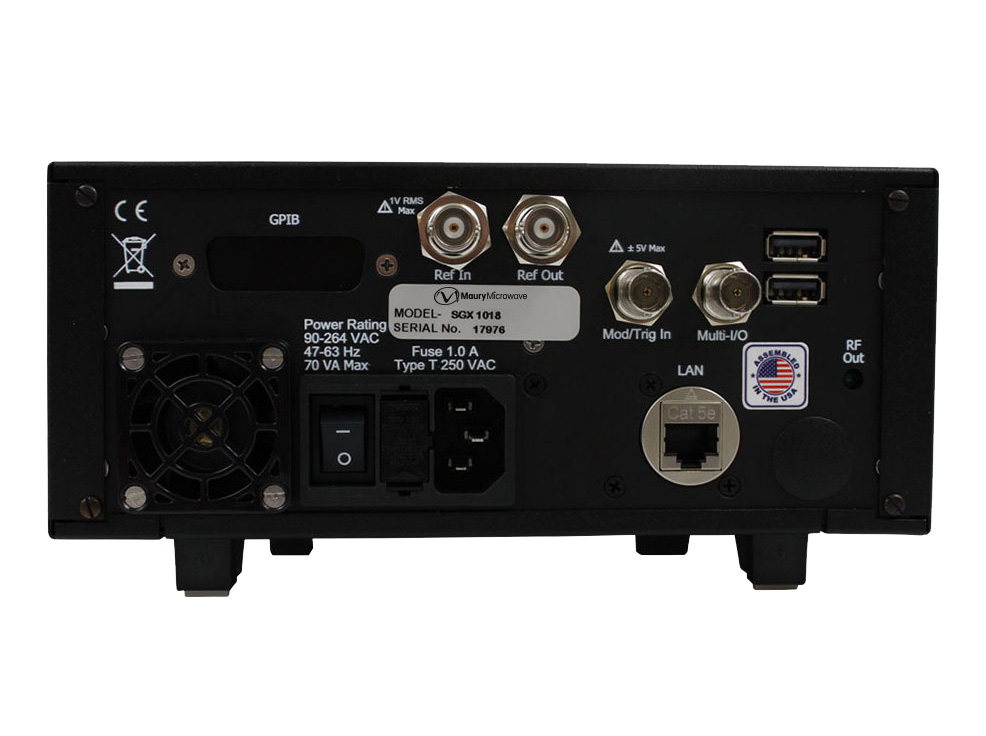

The SGX1000 series of RF signal generators offer high performance signal generation with an easy-to-use interface in a compact form factor. The SGX1000 utilizes a proprietary blend of direct digital and direct analog synthesis to provide ultra-fine frequency resolution, lightning-fast frequency switching, ultra-low phase noise and jitter, and superior reliability.

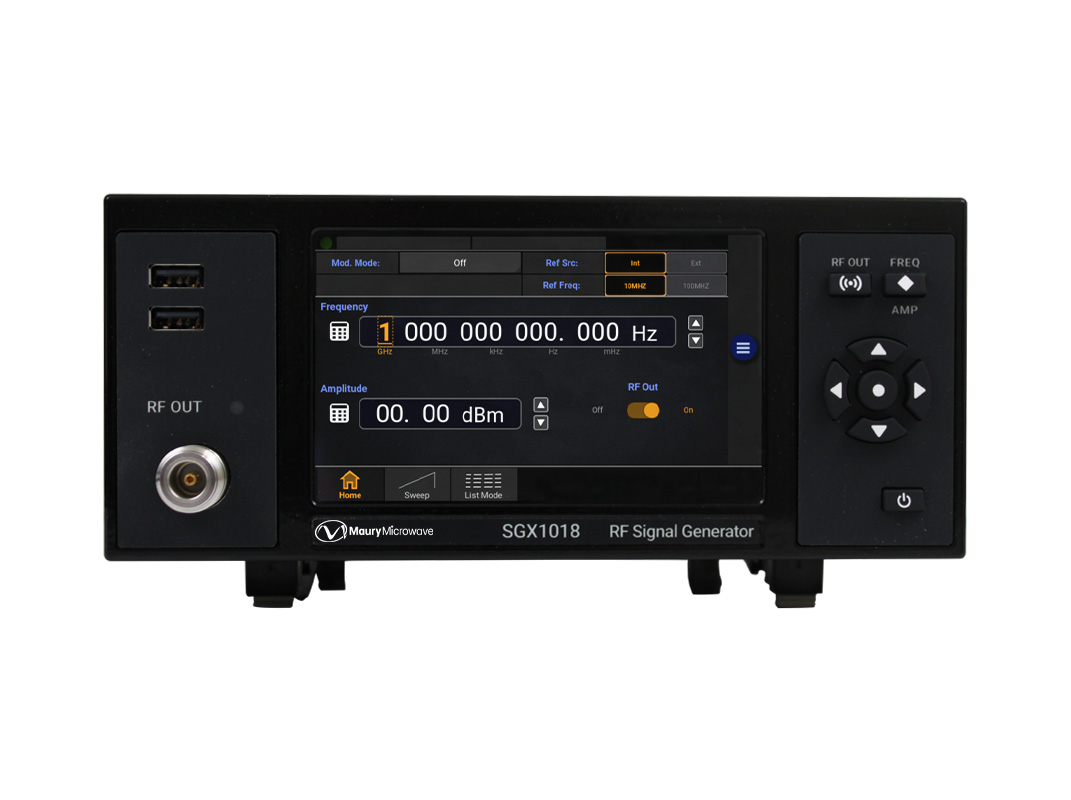

The signal generator incorporates an intuitive, multi-touch display that enables easy access and configuration to perform frequency and/or power sweeps to address a wide variety of test requirements.
Key Features
Models
Specifications
Frequency Range
Output Power Range
Switching Speed
Phase Noise
Jitter
Amplitude Accuracy (as low as -40 dBm)
10 MHz to 18 GHz
-50 to +18 dBm
350µs (typ)
(3 GHz, 10 kHz offset) -122 dBc/Hz (typ)
60 fs (typ)
+/-0.5 dB (typ)
Features & Benefits
- Frequency range: 10 MHz to 18 GHz
- Output power range: -50 to +18 dBm
- 10/100 MHz reference input
- Multi-touch, touchscreen
- Lightning fast – Switching speed: 350µs (typ)
- Ultra-low phase noise (3 GHz, 10 kHz offset) -122 dBc/Hz (typ)
- Ultra-low jitter: 60 fs (typ)
- Excellent amplitude accuracy (as low as -40 dBm): +/-0.5 dB (typ)
