Single and Multi-Channel Synthesizers
HS9100 Series
The HS9100 Series multi-channel platform is designed to achieve optimal channel-to channel stability across multiple integrated channel synthesizers via a conductively cooled, fan-less enclosure. Specific attention is paid to phase coherency between the independently controllable channels. Application specific frequency options can be configured to cover combinations up to 1 GHz, 2 GHz, 3 GHz, 4 GHz, 6 GHz, 12 GHz, and 18 GHz.

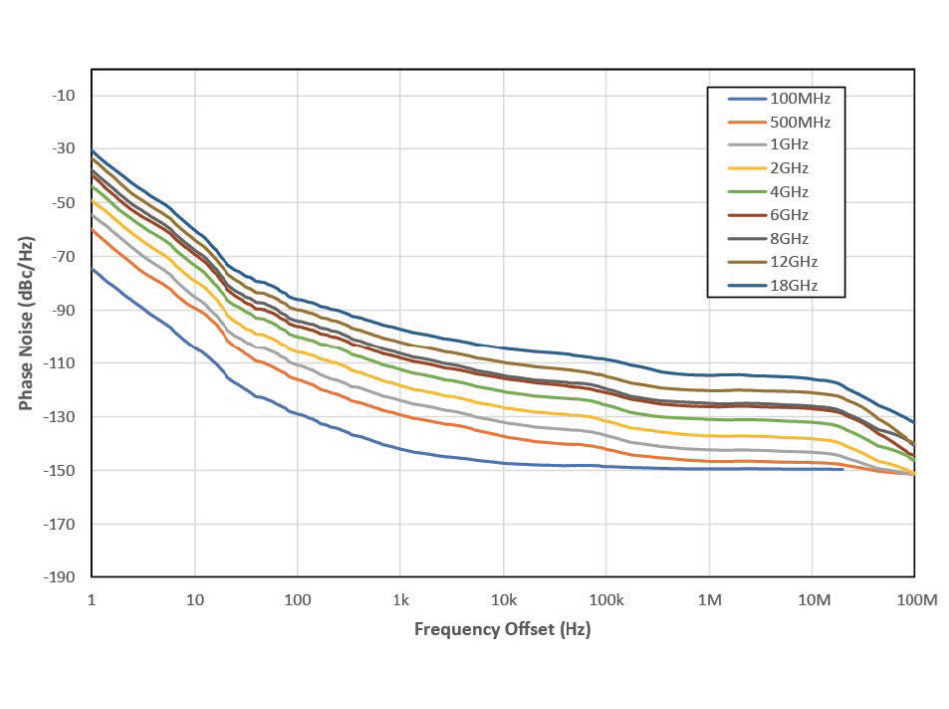

The HS9100 Series is a unique platform allowing the user to specify custom configurations for a COTS product. Units are loaded with anywhere from 1 to 8 channels, with the additional flexibility to specify each channel’s frequency limits and performance options. A 16-channel narrow band configuration is also available. The result is a high performance, low phase noise, fast switching, multi-channel synthesizer that is tailored to an application with an optimal price point.
Key Features
Models
Specifications
Number of Channels
Frequency Options
Up to 8 channels
1 GHz, 2 GHz, 3 GHz, 4 GHz, 6 GHz, 12 GHz, and 18 GHz
Features & Benefits
- Fully independent channel
- Phase coherent channels
- The ultimate in channel-to channel stability
