Single and Multi-Channel Synthesizers
HSY Series

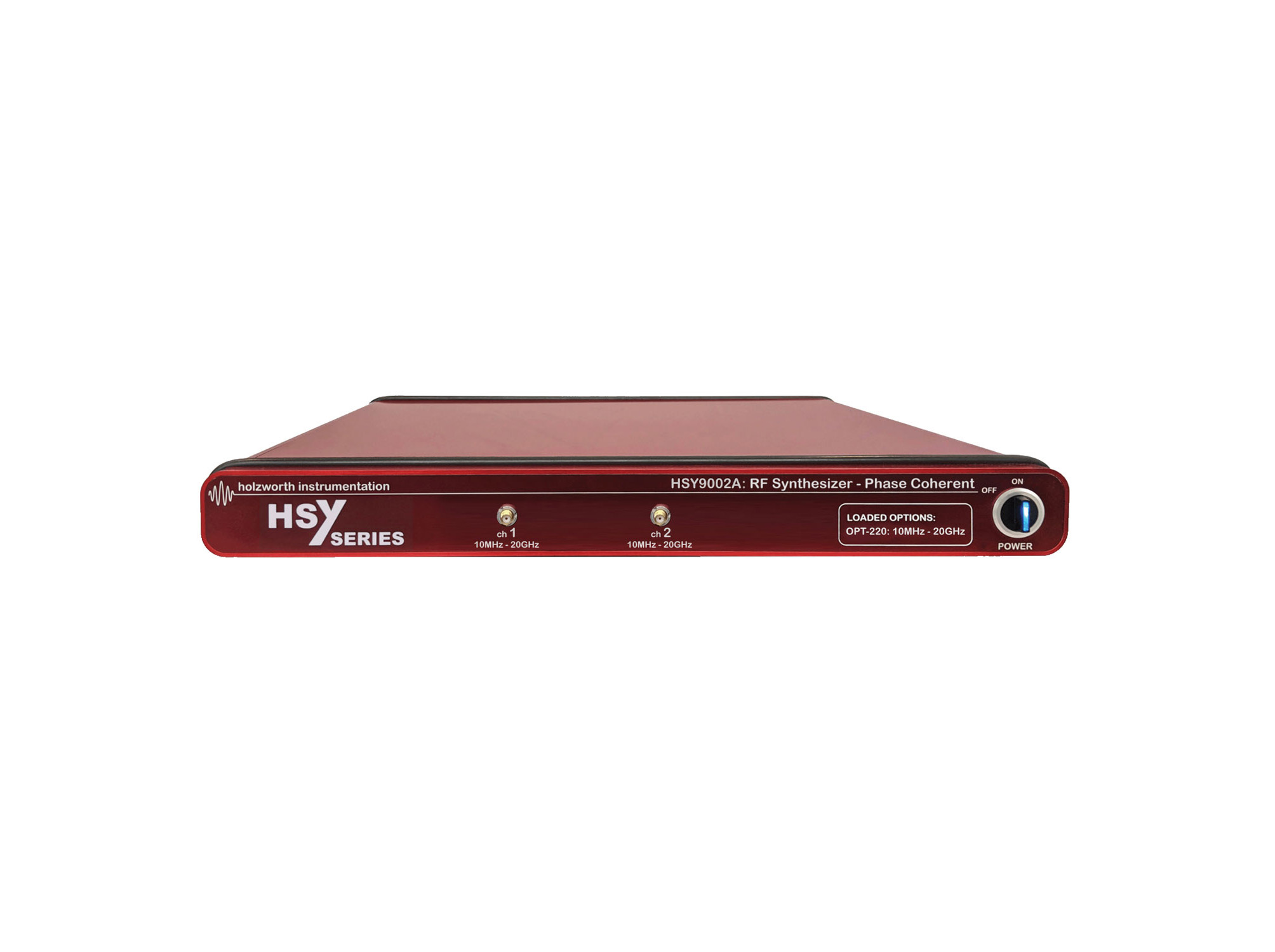

The HSY9100 Series RF synthesizers offer industry-leading phase noise and spectral purity performance as a multichannel CW signal source. The compact 1U chassis allows for anywhere from 1 to 2 independently tunable channels (frequency / phase offset / amplitude) to optimize channel density within test system racks where real estate is limited. Application specific frequency options can be configured to cover combinations of 10 MHz to 3 GHz, 6 GHz, 12 GHz, and 20 GHz. Each broadband channel output provides an accurate dynamic range of up to +18 dBm to -110 dBm. The unique multi-loop architecture provides the ultimate in frequency accuracy, channel-to-channel stability, and phase coherency.
Key Features
Models
Specifications

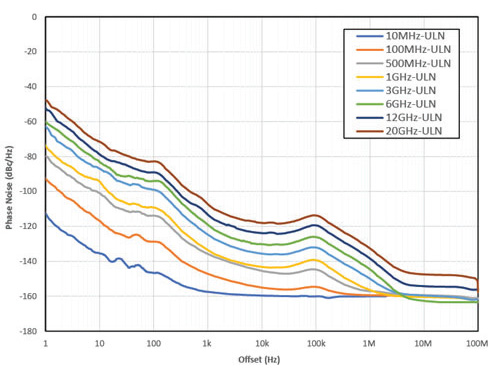

3 GHz Phase Noise
6 GHz Phase Noise
12 GHz Phase Noise
20 GHz Phase Noise
-136 dBc/Hz (10kHz offset) with OPT-ULN
-135 dBc/Hz (10kHz offset) with OPT-ULN
-123 dBc/Hz (10kHz offset) with OPT-ULN
-118 dBc/Hz (10kHz offset) with OPT-ULN
Features & Benefits
Fully Independent Channels: Each RF output is driven by a separate, internally loaded synthesizer/attenuator module. Up to 2 independently tunable synthesizers can be specified per 1U chassis allowing for the highest integrated channel density available in its class.
Phase Coherent Channels: The HSY9000 Series RF synthesizers offer the performance benefits of a proprietary YIG-based, multi-loop architecture with a centralized reference distribution subsystem, which maintains a tight phase coherent relationship across all integrated channels.
The Ultimate In Channel-to-channel Stability: Different from traditional PLL-based synthesizers, the proprietary multi-loop architecture creates precisely synthesized signals that exhibit both instantaneous and long-term stability. Temperature variations between the channels remain the only contribution to drift. The thermally optimized, fan-less chassis was specifically developed for maintaining the lowest possible thermal gradients from channel-to-channel. Channel specific thermal monitoring is available for tracking the relative channel temperature of each loaded synthesizer module.
