Synthesizer Modules

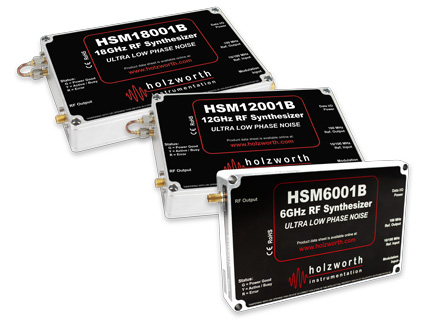

HSM Series
The HSM Series RF Synthesizers are microwave CW sources that are architected on a non-PLL based platform. The digital-analog hybrid design provides excellent phase noise performance and spurious response, which complement the phase coherent nature of these digital-analog hybrid signal sources. The HSM Series offers several models that cover increasingly wider bandwidths so users can best match an application requirement while optimizing the price point.
Key Features
Models
Specifications
Frequency Options
10 MHz to 1 GHz, 2 GHz, 3 GHz, 4 GHz, and 6 GHz; 100 MHz to 12 GHz and 18 GHz
Features & Benefits
- Agile Frequency Switching Speeds

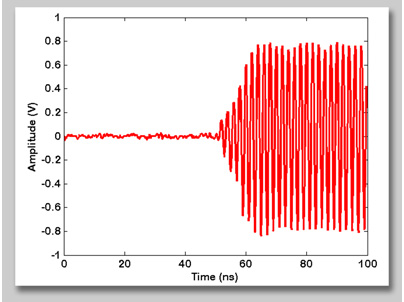

- Pulse Modulation Burst Mode (internal pulse)
- Onboard 100 MHz Ultra-Low Noise OCXO
- Reference Input: 10 MHz or 100 MHz
- SPI, USB or Ethernet Communications Interface
- Internal Temperature Monitor Output
