Device Characterization
InsightPro Series
InsightPro™ is the industry’s premier unified software suite, designed to accelerate the component and sub-system measurement and model extraction workflow for R&D, design verification, and small-scale production testing.

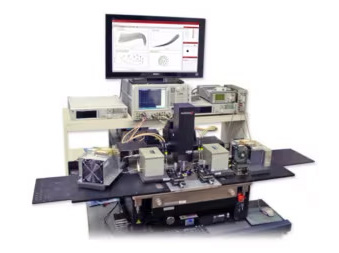

Built with a measurement-first approach, InsightPro™ serves as the primary software interface for instrument-agnostic small-signal and large-signal characterization in both 50Ω and non-50Ω environments. By streamlining data collection, management, and analysis, it enables engineers and researchers to make informed decisions with confidence.
Key Features
Models
Applications
Features & Benefits
- Flexible bench configuration empowers users to easily set up instruments and DUTs to match any measurement workflow.

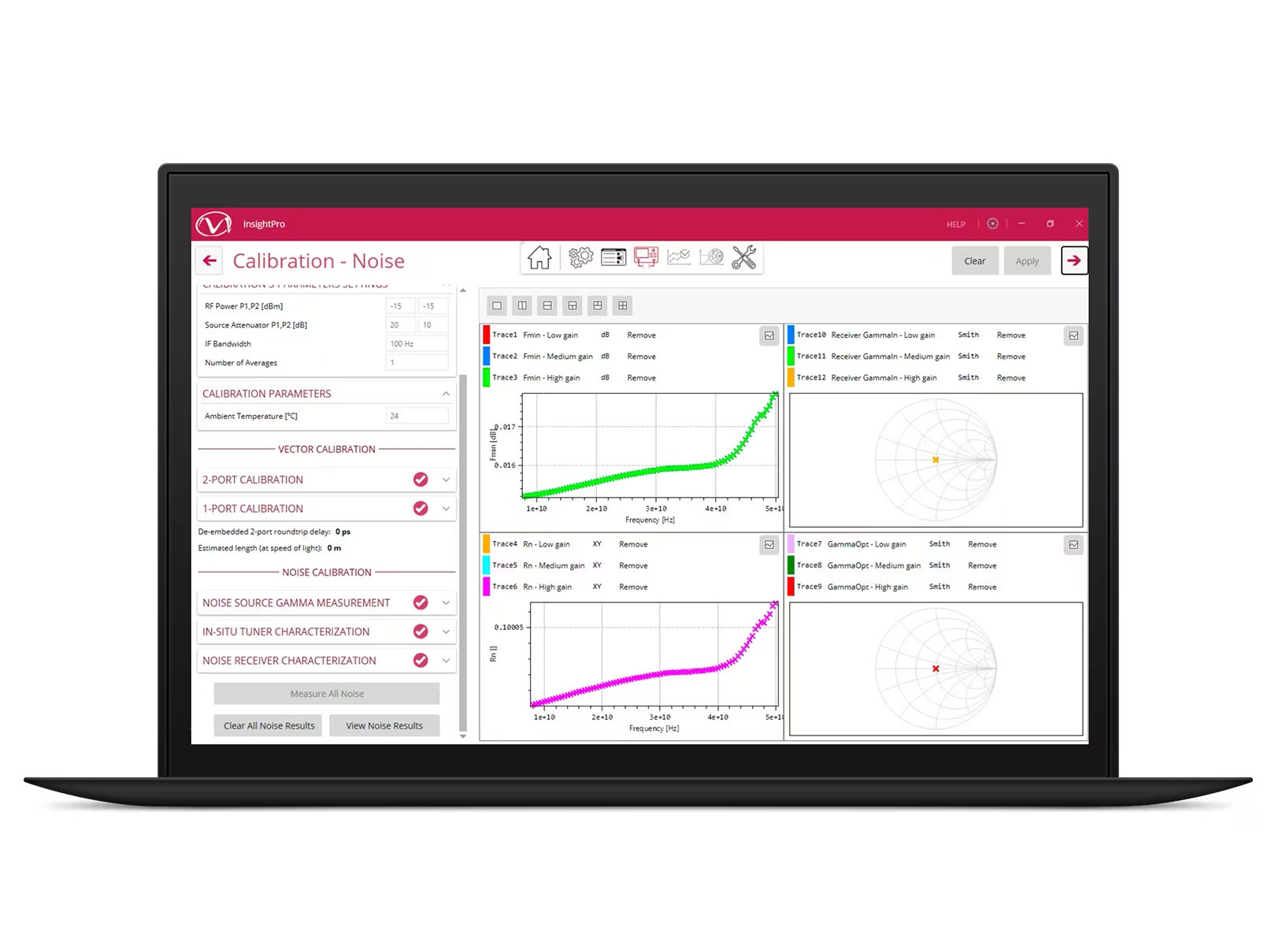

- Automated, multi-instrument calibration workflows empower users to achieve high accuracy results across diverse setups with minimal user intervention.
- Built-in system calibration verification instills confidence in measurement accuracy before data collection begins.
- Comprehensive small-signal, large-signal, and pulsed testing captures real-world device behavior for reliable design and modeling.
- Powerful visualization and analytics suite empowers users to quickly interpret results, extract models, and drive faster design decisions.
- Transistor characterization
- Model validation and refinement
- Amplifier design
- Behavioral model extraction
- Stability and ruggedness testing
