MT2001 Series

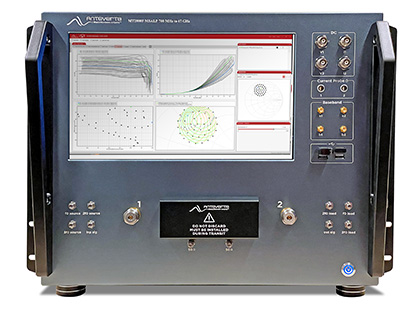

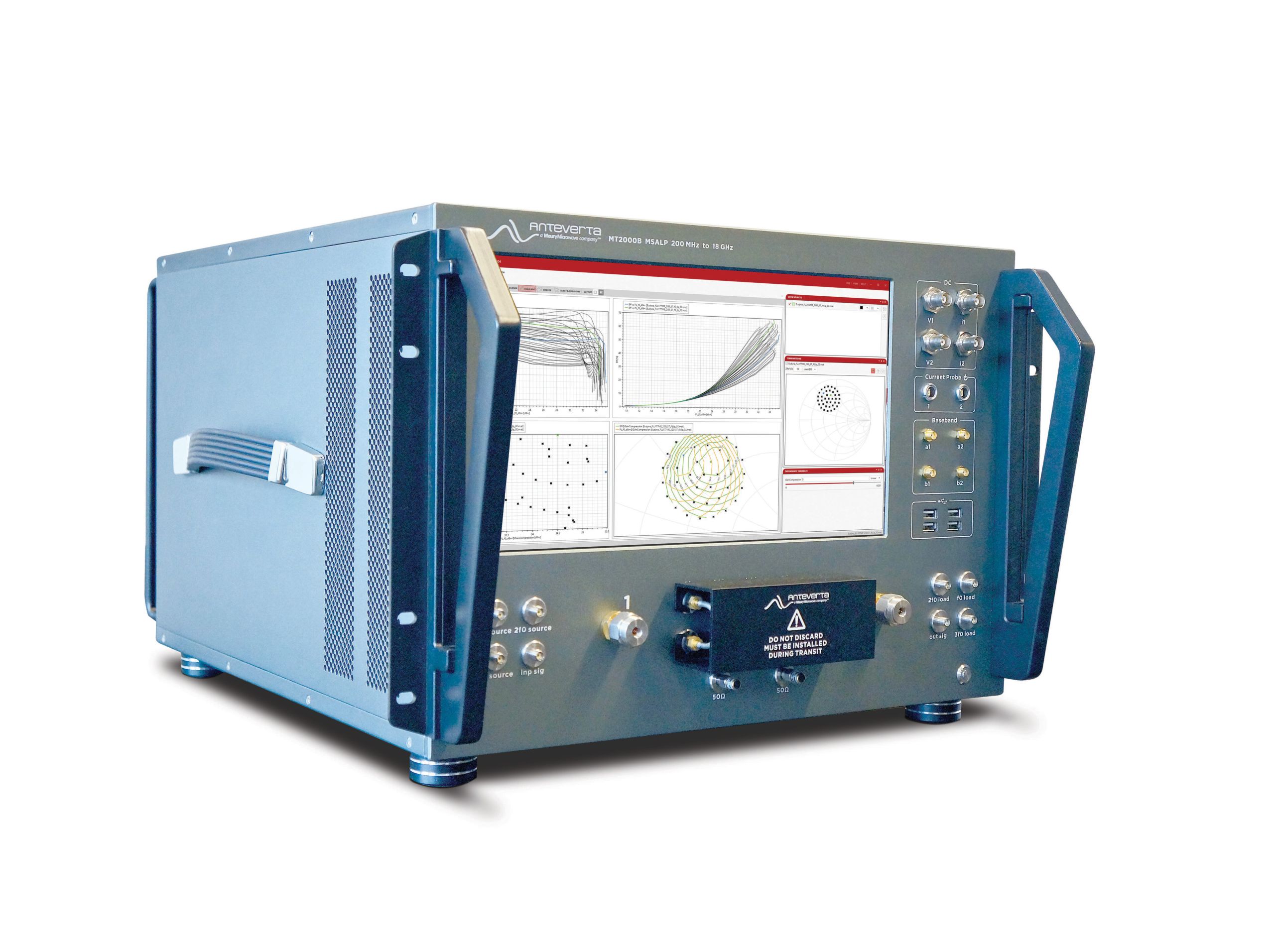

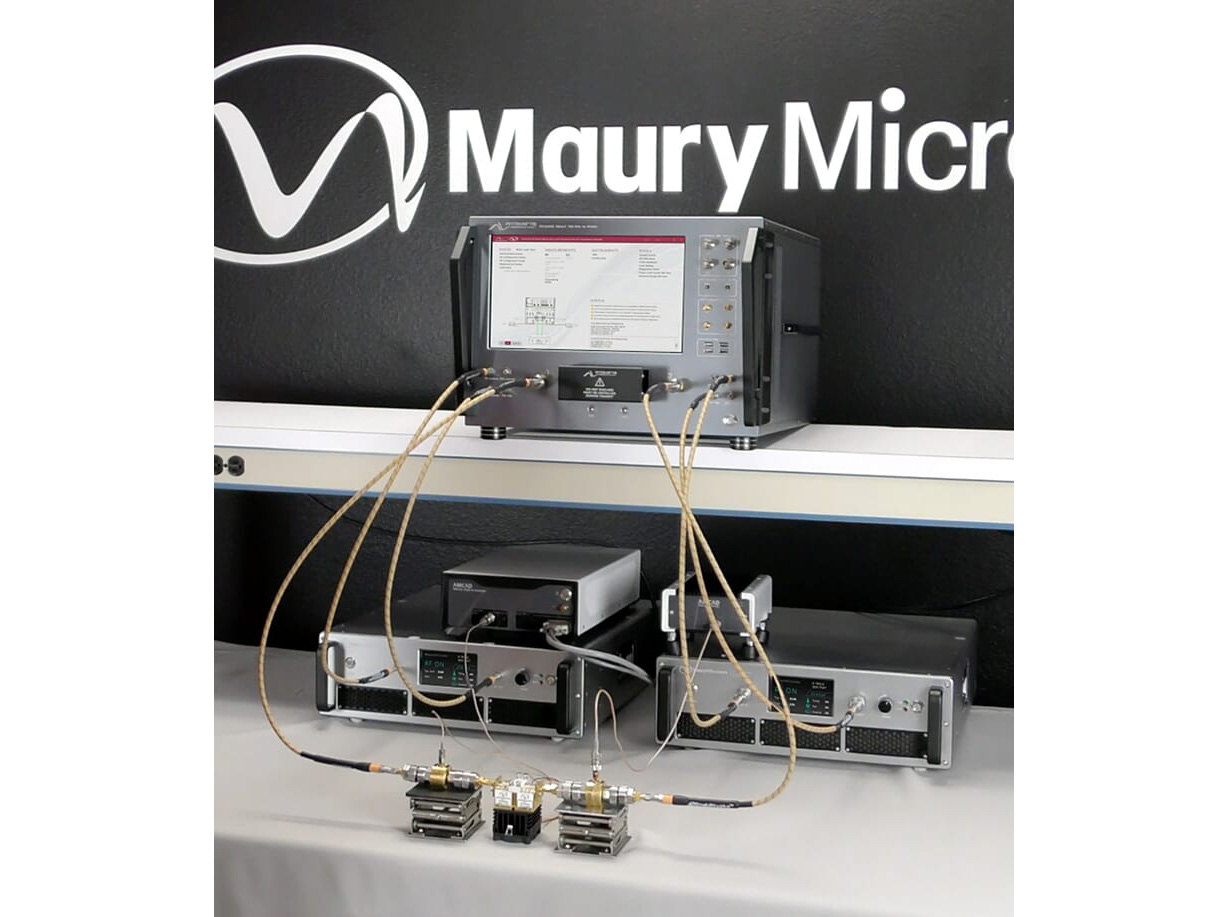

The MT1000 and MT2000 are turnkey one-box load pull solutions that replace the functions typically performed by passive fundamental and harmonic impedance tuners, VNAs, NVNAs, analog signal generators, vector signal generators, vector signal analyzers and oscilloscopes, and add the capabilities of high-speed load pull measurements and wideband impedance control for modulated signals. By combining multiple bench setups into a single box, offering unrivaled load pull speeds, and maximizing smith chart coverage, Maury’s MT2000 is a powerhouse for device characterization, validation nonlinear compact models and extracting nonlinear behavioral models.
Key Specifications
Models
Screenshots
Videos
Specifications
Frequency Range
Bandwidth
Dynamic Range
Measurement Speed
Harmonic Control
1 MHz to 67 GHz
100 MHz to 1000 MHz
60 dB
100/1000 pts/s
Fo/2Fo/3Fo
Features & Benefits
- Single-tone, Pulsed, and Time-Domain NVNA measurements
- Up to 1000 impedance/power states per minute
- Maximum Smith chart coverage
- Modulation Bandwidth up to 1000 MHz
- Using ACPR and EVM measurement data in the design of wideband PA circuits
- Improve PA linearity based on controlled baseband terminations
- Reduce time-to market due to faster measurement speeds
- Compatible with 1-port and 2-port DUTs
