Maury solid-state power amplifiers are based on modern Class AB GaN technology with outstanding linearity performance and reliability. Ideal for CW, pulsed, and modulated signals for EMC, EW, radar, and component testing, Maury power amplifiers are the ideal wideband and high-power solution to simplify bench setup and optimize measurement time.
Visit maurymw.com/info/eumw-2025 to learn more about Maury Microwave solutions.
CW Amplifiers
| Frequency | Maximum Saturated Power capabilities – CW Amplifiers |
|---|---|
| 0.4–12 GHz | 100 W |
| 0.6–6 GHz | 2000 W |
| 2–8 GHz | 2000 W |
| 2–18 GHz | 250 W |
| 6–18 GHz | 2000 W |
| 8–12 GHz | 2000 W |
| 18–26.5 GHz | 100 W |
| 18–40 GHz | 100 W |
| 26.5–40 GHz | 400 W |
| 40–54 GHz | 200 W |
| 90–98 GHz | 30 W |
Pulsed Amplifiers
| Frequency | Maximum Saturated Power Capabilities – CW Amplifiers |
|---|---|
| 0.4–12 GHz | 100 W |
| 0.6–6 GHz | 2000 W |
| 2–8 GHz | 2000 W |
| 2–18 GHz | 250 W |
| 6–18 GHz | 2000 W |
| 8–12 GHz | 2000 W |
| 18–26.5 GHz | 100 W |
| 18–40 GHz | 100 W |
| 26.5–40 GHz | 400 W |
| 40–54 GHz | 200 W |
| 90–98 GHz | 30 W |
Features and Options

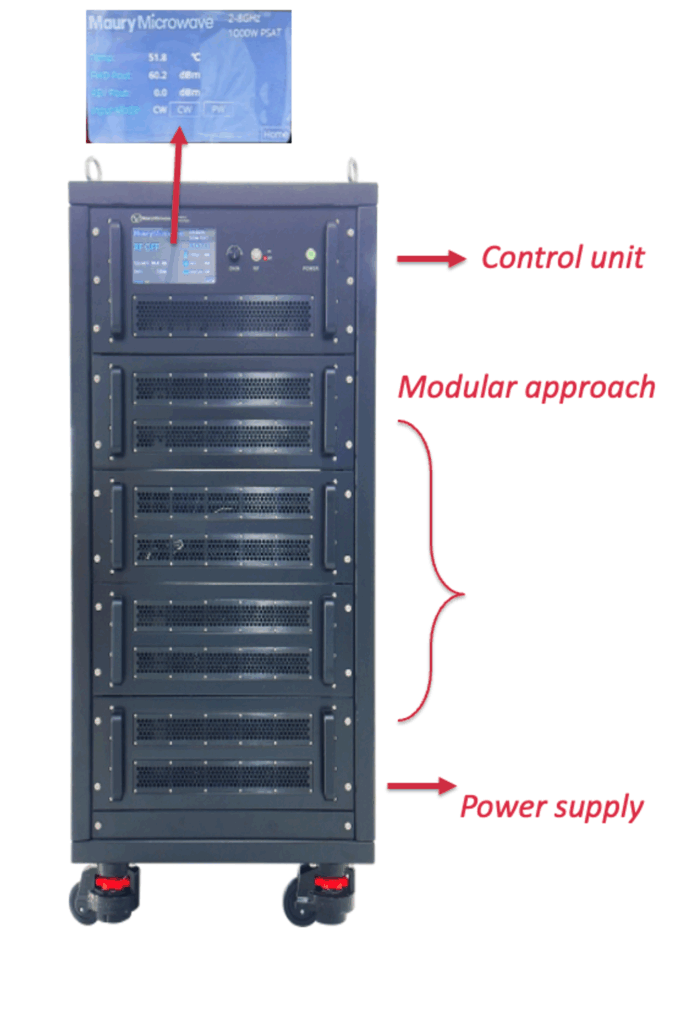

- Integrated control unit for diagnostic and remote operation
- Modular approach (Control unit, RF modules, Power supply)
- High VSWR load protection and operation. Options from 6:1 to infinite.

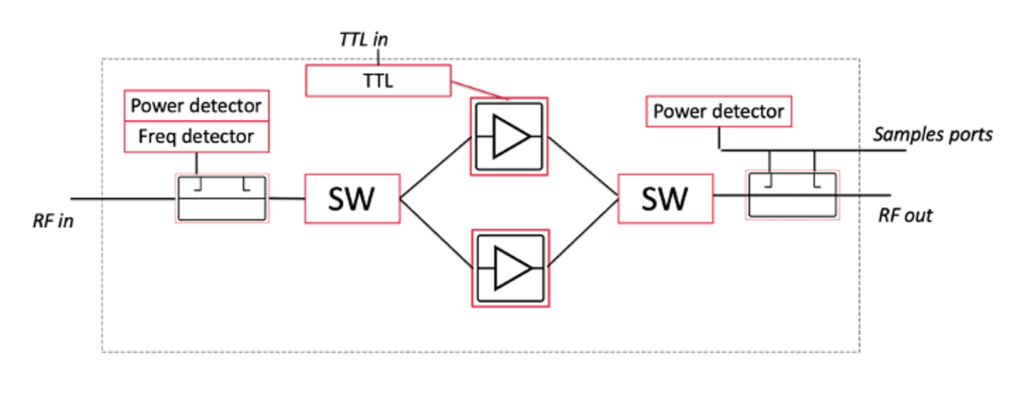

- Customization capabilities:
- TTL
- Integrated Switches
- Integrated low Loss Couplers
- CW and Peak detectors
- Form factor and system integration
| Options |
|---|
| Coupler |
| TTL |
| Sample ports |
| Switch |
| Interlock |
| Ports on the rear |
