Maury at IMS 2024

June 16 - 21, 2024

Washington, DC

Booth #704

Join Maury Microwave at booth #704 during this year’s IEEE MTT-S International Microwave Symposium (IMS). Booth #704 will feature our comprehensive product portfolio and various in-booth demonstrations highlighting the capabilities of our state-of-the-art solutions. Maury Microwave will also lead an IMS 2024 MicroApp seminar that focuses on using measurements captured by peak power sensors to predict error vector magnitude (EVM) degradation for OFDM systems.

Contact Us

Learn more about Maury solutions featured at IMS 2024

MMW-STUDIO Series

Learn more

Noise Conditioning Module Series

Learn more

MT1000-MT2000 Series

Learn more

RTP5000 Series

Learn more

PMX40 Series

Learn more

UFX7000B Series

Learn more

HA7162D Series

Learn more

HSX Series

Learn more

Automated Tuner Series

Learn more

ACE9600 Series

Learn more
Best-in-Class Solutions

PAPR as a Fast and Cost-Effective Indicator of EVM Degradation

Presented by Bob Buxton, Product Manager at Maury Microwave, attendees will learn a practical measurement solution using the peak-to-average power ratio (PAPR) and complementary cumulative distribution function (CCDF) that provides a fast and economical alternative to measuring EVM.

Date/Time

Wednesday, June 19, 2024 from 12:15 PM – 12:30 PM ET at the convention center’s MicroApps Theater.


demonstration highlights

Device Characterization, Active Load Pull, and Cryogenic Noise Parameters

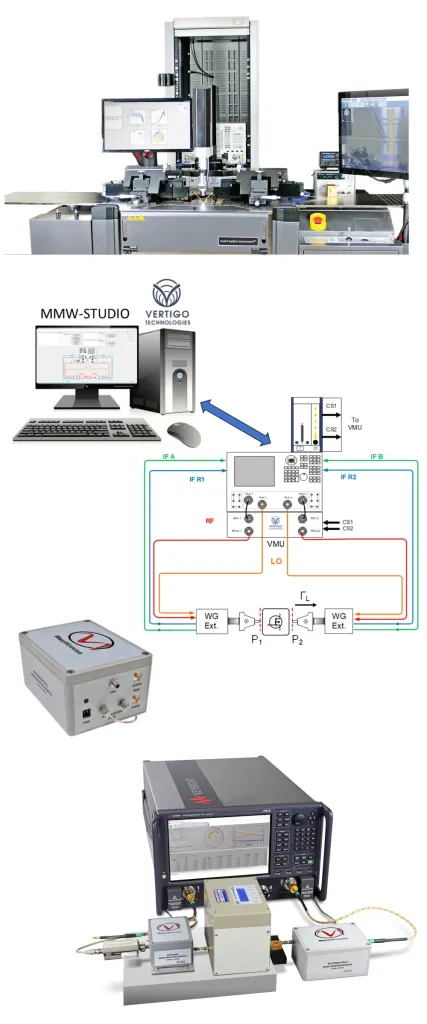

Active Device Characterization up to 330 GHz

Achieving high VSWR is crucial at high frequencies since passive interconnects, such as waveguide sections and on-wafer probes, experience higher loss, which reduces the maximum reflection coefficient presented to the device under test (DUT). A demo at this year’s show will feature the prototype NT-220G330G-1C mmWave WR3.4 impedance tuner from Maury Microwave that offers the highest VSWR on the market by a significant margin, enabling users to perform active device characterization up to 330 GHz.

Active Load Pull for 6G and Sub-THz Frequencies

Learn how the MMW-STUDIO – a software suite provided by Vertigo Technologies that enables power and phase control at the DUT reference plane through the extenders – performs a power-controlled S-parameter measurement and an active load pull in the WR6.5 waveguide band (110 GHz – 170 GHz) on a waveguide connectorized amplifier.

Cryogenic Noise Parameters

LNA design for quantum computing, radio astronomy, and other applications that operate at cryogenic temperatures require advanced and reliable noise parameter measurement capabilities. This demonstration uses a cryogenic noise parameter system, featuring the MT7553A03 noise receiver module, that can extract noise parameters down to 4 Kelvin at cryogenic temperatures while utilizing a cryogenic solid-state tuner to achieve non-50 ohm environments at the DUT input.

demonstration highlights

Wideband Impedance Control, Power Measurements, Noise Generation

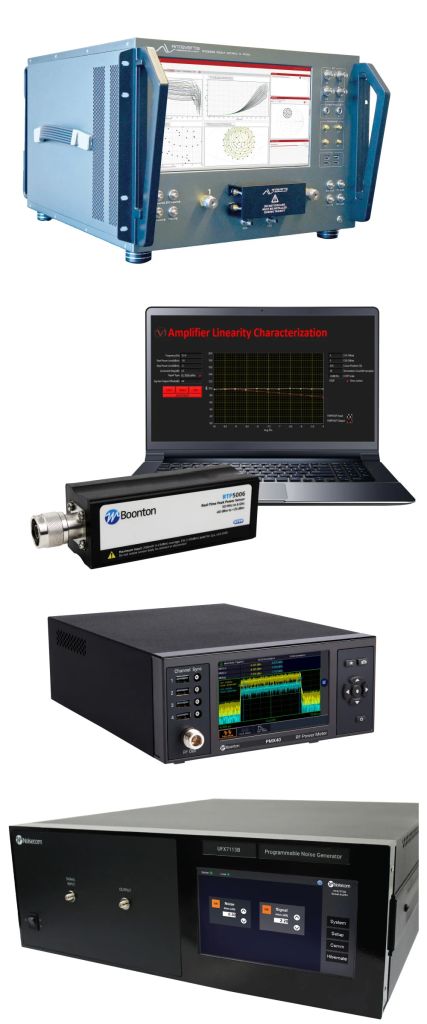

Wideband Impedance Control at 5G FR2

The MT2000 is a turnkey one-box load pull solutions that offers wideband impedance control for modulated signals over the hardware’s modulation bandwidth and performs load pull at high speeds – up to 1000 impedance/power states per minute – with no limitation on Smith chart coverage. Watch the MT2000 mixed-signal active load pull system in action as it performs load pull on an LNA.

Power Amplifier Linearity Characterization

Modern m-QAM, OFDM systems exhibit high PAPR. If the peaks are suppressed due to amplifier nonlinearity, symbol and bit errors may occur. Learn how the RTP5000 series USB real-time peak power sensors can provide PAPR results and CCDF curves to evaluate an amplifier’s nonlinear behavior and impact on signal integrity.

Stress your Receiver with Complex Interference

The signal-to-noise ratio (SNR) and carrier-to-noise (C/N) ratio can quantify a system’s tolerance to complex noise, providing insight into its real-world performance. With the UFX7000B, learn how controlled additive white Gaussian noise (AWGN) can ensure the performance designed in the lab is realized in the field. Related power measurements are captured and analyzed by RTP5000 sensors and the PMX40 benchtop RF power meter.

demonstration highlights

Phase Noise Analysis, Advanced Channel Emulation, On-Wafer Load Pull

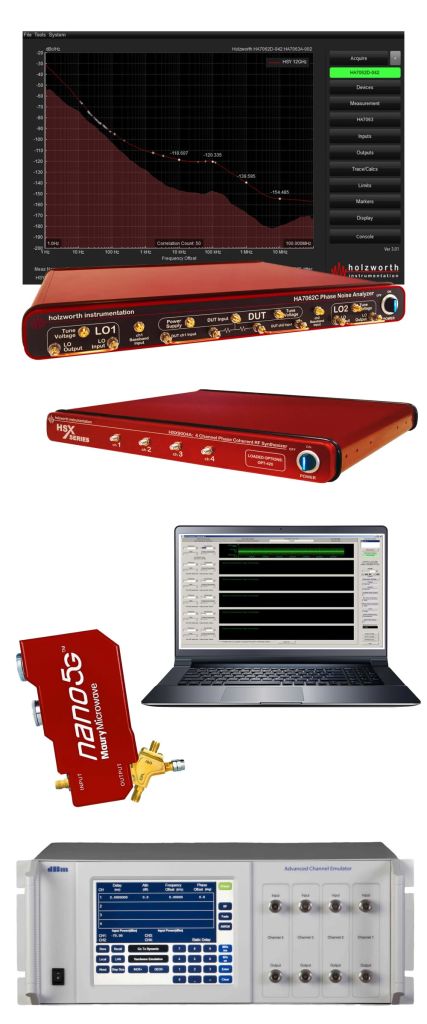

Qualifying LO Substitution Phase Noise Improvements

Today’s communication systems utilize high order modulation to achieve high data throughput, which requires faster clock rates that can increase symbol errors. A potential source of these errors is phase noise from the existing local oscillator (LO). This demonstration features the HSX9000A series of multi-channel RF synthesizers with the ultra-low phase noise option as an ideal LO substitute, and the HA7062 series for real-time phase noise analysis.

5G NTN Link Emulation and Hardware-in-the-Loop Test

Get a live look at the leading-edge capabilities of the ACE9600 Advanced Channel Emulator, a non-terrestrial RF channel emulation solution that simulates link and hardware-based impairments on a signal’s path. Using its advanced emulation capabilities, the ACE9600 will show how real-world operating conditions impact signal constellation and other spectrum measurements.

On-Wafer Passive Load Pull for 5G FR2

In an in-booth demo at IMS, a vector-receiver source-pull and load-pull setup will utilize two Nano5G™ tuners to manipulate source and load impedance and optimize the performance of a high-frequency, high-power device. The Nano5G model enables highly reliable passive load pull measurements for 5G applications, especially in the 28 GHz and 39 GHz bands allocated for FR2, although continuous operation is available from 18 GHz – 50 GHz.

Demonstrations & Best-in-Class Solutions

Read our IMS 2024 Demonstration Guides

Demos

IMS 2024: Active Device Characterization up to 330 GHz

Learn more
Demos

IMS 2024: Active Load Pull for 6G and Sub-THz Frequencies

Learn more
Demos

IMS 2024: Cryogenic Noise Parameters

Learn more
Demos

IMS 2024: Wideband Impedance Control at 5G FR2

Learn more
Demos

IMS 2024: Power Amplifier Linearity Characterization

Learn more
Demos

IMS 2024: Stress your Receiver with Complex Interference

Learn more
Demos

IMS 2024: Qualifying LO Substitution Phase Noise Improvements

Learn more
Demos

IMS 2024: 5G NTN Link Emulation and Hardware-in-the-Loop Test

Learn more
Demos

IMS 2024: On-Wafer Passive Load Pull for 5G FR2

Learn more
Demos

IMS 2024: Interconnect and Precision Calibration Solutions

Learn more
Best-in-Class Solutions

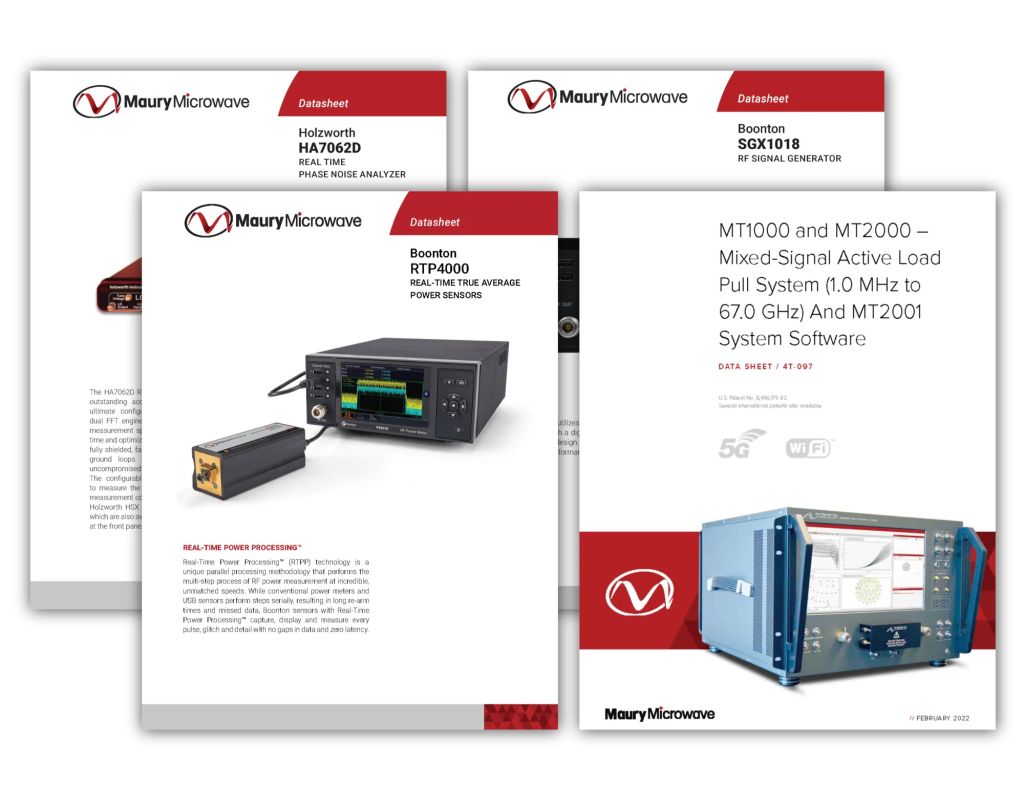

Featured Datasheets
