Coaxial Adapters
ColorConnect Adapter Series

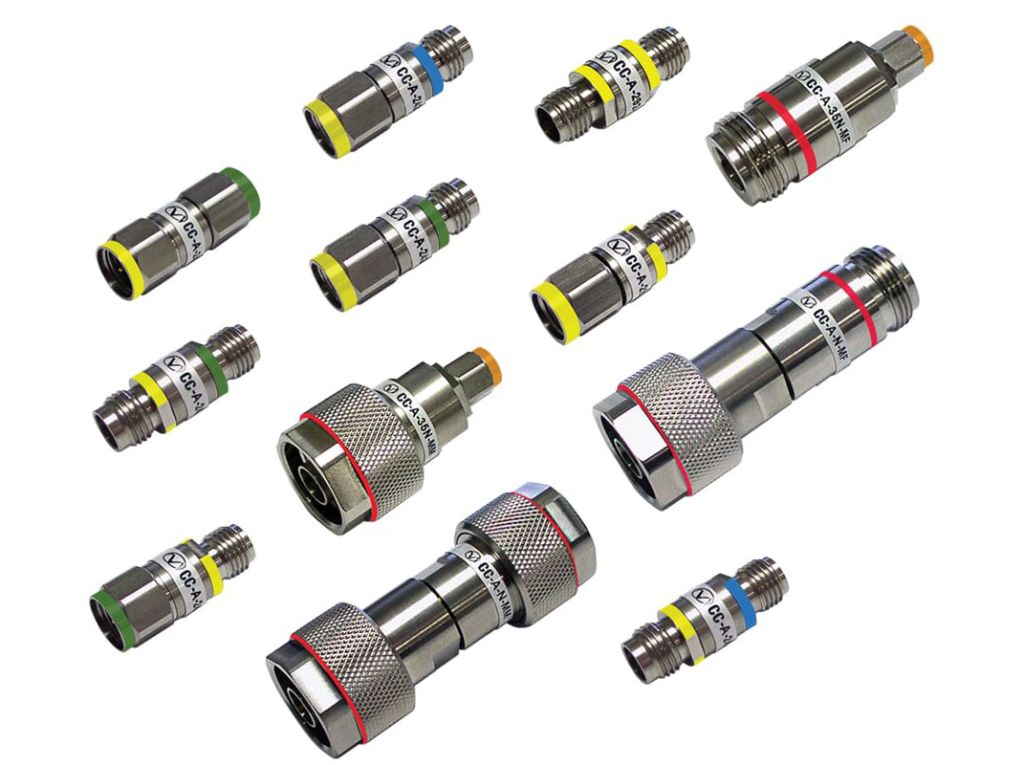

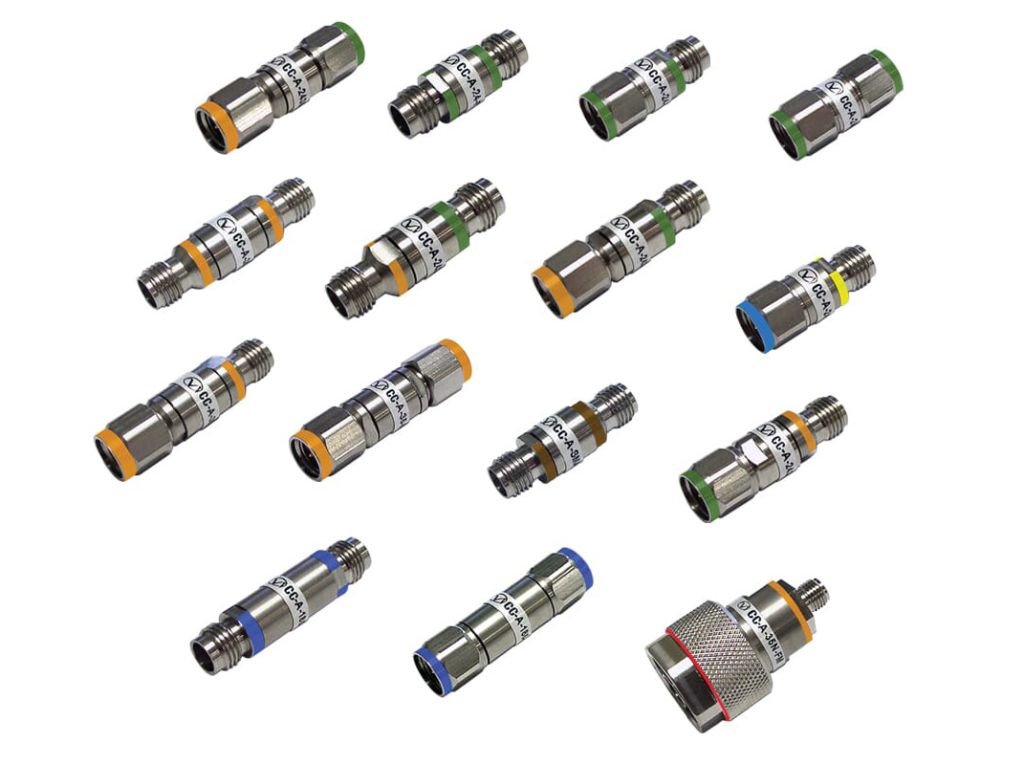

ColorConnect™ color-coded precision adapters (CC-series) have been designed for lab and field use where quality, performance, ease-of-identification, and ease-of-use are critical. Following the IEEE P287 high-frequency connector/adapter color convention, ColorConnect™ precision adapters offer clear indications of compatibility and intermatability. ColorConnect™ makes it a simple matter to avoid and eliminate damaged equipment, degraded equipment reliability, degraded performance, and lengthy maintenance times due to improper mating (and attempted mating) of incompatible adapters. ColorConnect™ Precision Adapters are available with SMA, Type N, 3.5mm, 2.92mm, 2.4mm and 1.85mm connectors up to 67 GHz.
Key Features
Models
Specifications
Frequency Range
VSWR
Color Coded
Connections
DC to 67 GHz
1.1:1 to 1.2:1
Per IEEE P287
1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA, Type N
Features & Benefits
- Easily identify connector type, frequency range, and torque requirements
- Prevent expensive damage and downtime caused by attempted mating of incompatible connectors
- Uses IEEE P287 high frequency connector color code
- Part of a comprehensive family of color-coded cable assemblies, adapters, attenuators, and tools
- Low VSWR rating
- MIL-spec concentricity and pin depth
