Modulation Analyzers
8201A Series

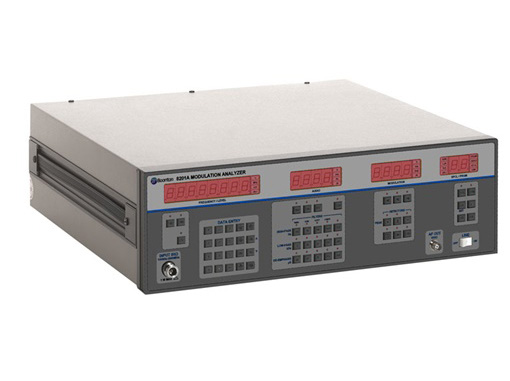

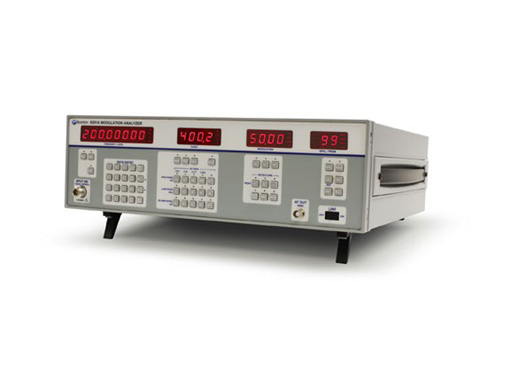

The 8201A provides precision modulation and audio analysis in a single, easy-to-operate package. Measures AM, FM, PM, carrier and audio frequencies, SINAD, distortion and carrier level.
Key Features
Models
Options
Accessories
Specifications
Carrier Frequency Range
FM Deviation
AM Modulation Depth
ØM Deviation
Audio Distortion Range
Interface
100 kHz to 2.5 GHz
0 to 500 kHz to 1% accuracy
0 to 99% to 1% accuracy
0 to 500 radians to 3% accuracy
0.01% to 100% THD or 0 to 80 dB SINAD
GPIB
Features & Benefits
- AM, FM and ØM (AM and FM 1%, ØM 3% of readings)
- Carrier level and frequency (0.01 dB level and 10 Hz carrier resolution)
- Signal, noise and distortion power (sinad)
- 01 Avionics Specification Certification
- 02 Rear Panel RF Input
- 03 CCITT Filter
- 05 Amplitude Calibrator (0 dBm 50 MHz)
- 07 Audio Loop-through. Used with external filters to allow user-defined filtering. Option 07 excludes Option 03 and vice versa
- 08 CCIR Filter
- 09 C-MSG Filter
- PIN 95004492A: Rack Mount Kit (Ears & Handles)
