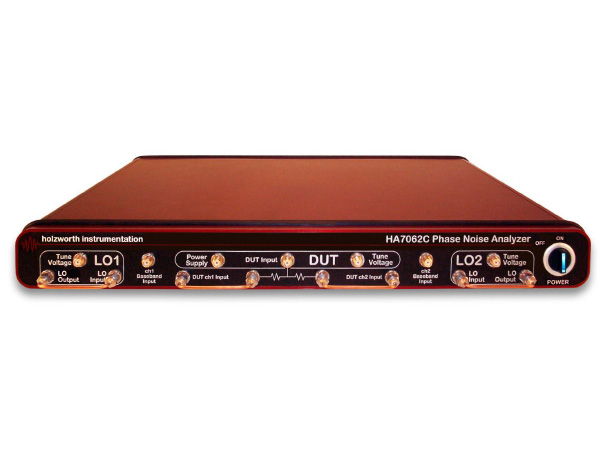

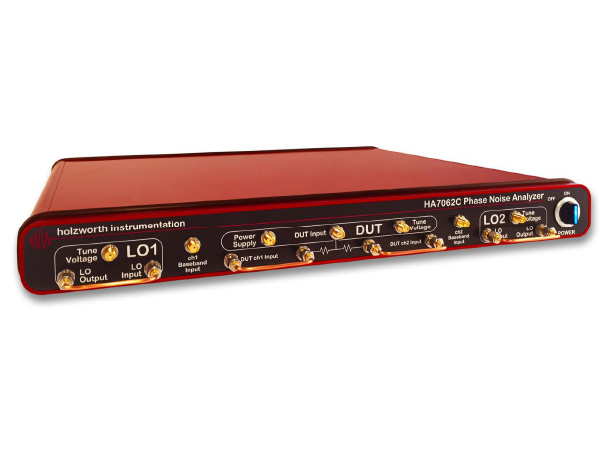

Phase Noise Analyzers
HA7162C Series
The HA7162C Real Time Phase Noise Analyzer is the industry leader with respect to proven accuracy, high reliability, automation and flexibility; offering extremely fast measurement speeds to reduce product development time and/or optimize ATE manufacturing throughput.
- Measured noise floors
- Unparalleled analog performance
- Repeatable data
Key Features
Models
Specifications
DUT Input
Measurement Bandwidth
10MHz-6GHz
0.1Hz to 40MHz offsets
Features & Benefits
Automated Absolute and Additive (Residual) Measurements
Real Time Cross Correlation
Only analyzer available that allows actual noise floor measurement
