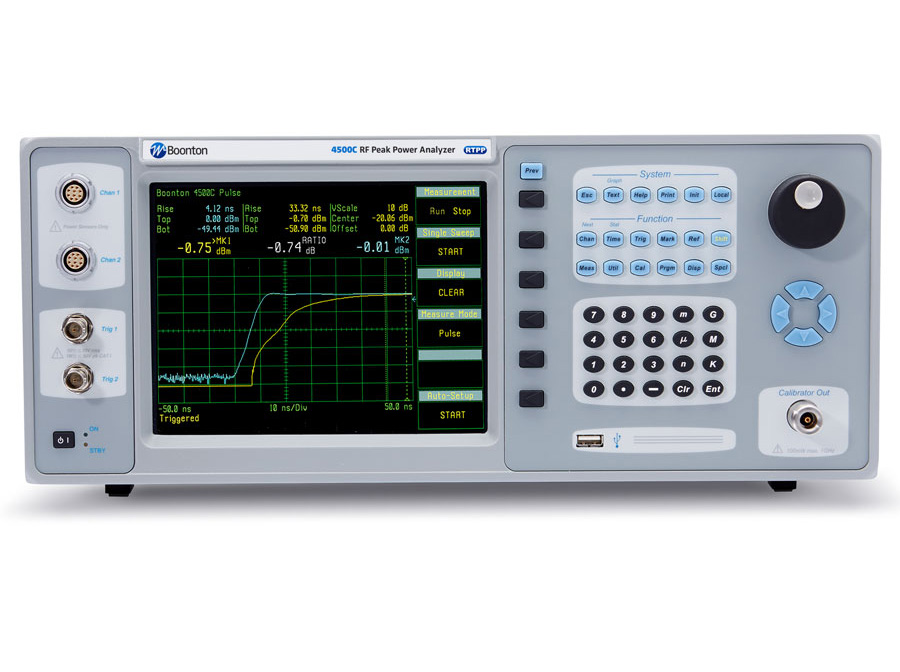

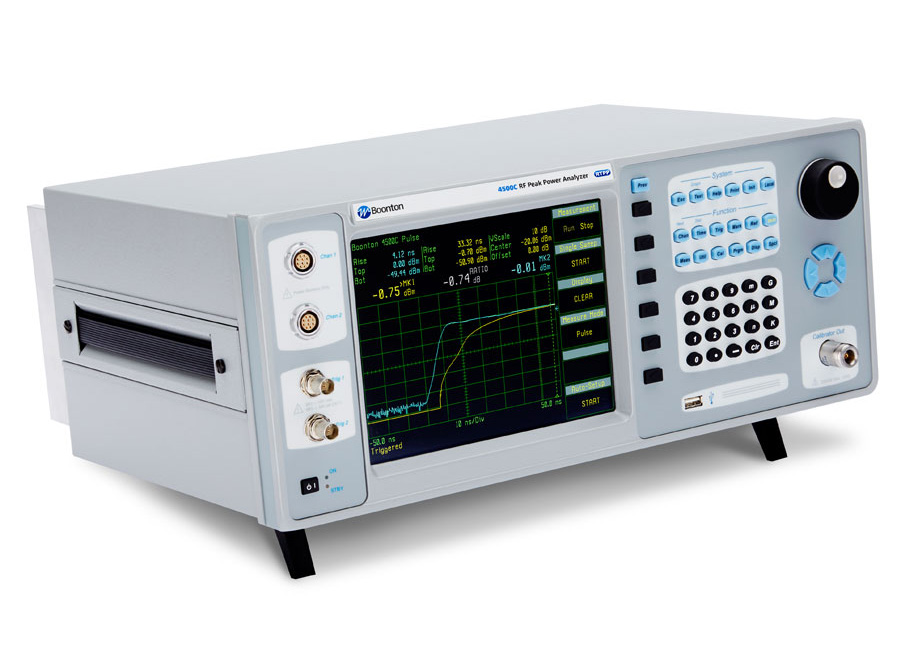

Power Measurement Analyzer
4500C
The 4500C is the instrument of choice for capturing, displaying, analyzing and characterizing microwave and RF power in both the time and statistical domains. It is ideal for design, verification, and troubleshooting of pulsed and noise-like signals used in commercial and military radar, electronic warfare (EW), wireless communications (e.g., LTE, LTE-A, and 5G), and consumer electronics (WLAN), as well as education and research applications.
Key Features
Models
Options
Accessories
Specifications
Frequency Range
Measurement Range
RF Channel Video Bandwidth
RF Channel Rise Time
Overall Accuracy
Time Resolution
Min Pulse Width / Max PRF
Channels
30 MHz to 40 GHz
-60 dBm to +20 dBm
125 MHz
< 5 ns
0.2 dB
100 ps
6 ns / 50 MHz
2 RF and 2 trigger
Features & Benefits
- Real-Time Power Processing™
- Ultrafast trace acquisition and refresh rate
- One button push for 15 automated power and time measurements
- Automatic peak-to-peak, delay-by-time and delay-by-events triggering
- Multi-level, multi-function calibrator
- Continuous statistical analysis (optional)
- Includes gated PDF, CDF, and CCDF
- Displays up to 4 measurement, 2 memory, and 1 math channel simultaneously

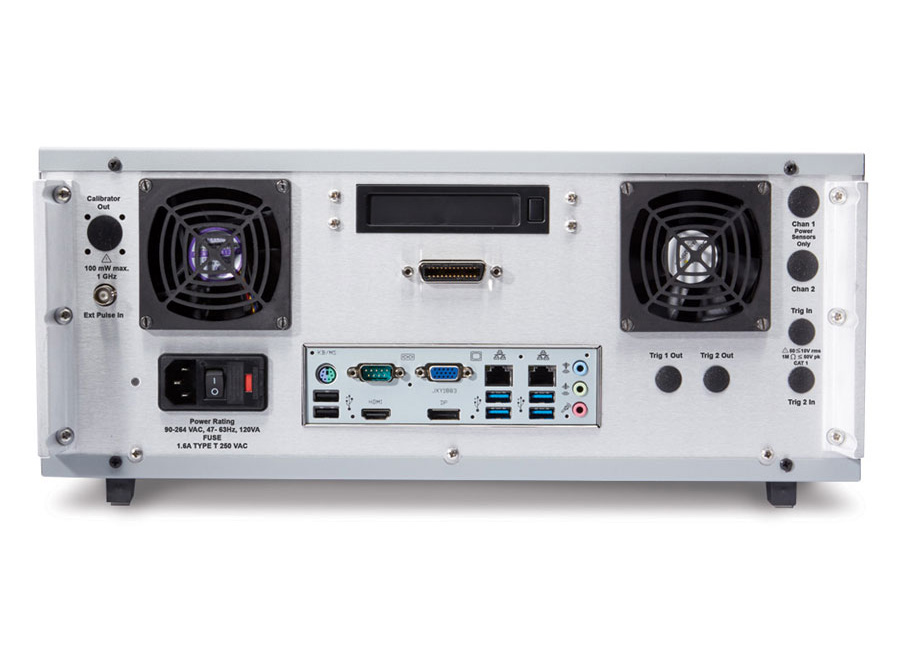

- 4500C-003 Dual Channel, Rear Panel Inputs
- 4500C-006 Dual Trigger Outputs (rear panel only)
- 4500C-007 Calibrator, Rear Panel Output
- 4500C-010 Statistical Package (includes gated CCDF and PDF)
- 4500C-015 Removable SSD (replacing internal SSD)
- 4500C-016 GPIB Control (internally installed)
- 4500C-RSSD Additional removable SSD with Software (requires option 4500C-015)
- 4500C-ISSD Spare internal SSD with Software
- 4500C-TCASE Transport case for 4500C
