StabilityFlex Low Profile Cables Series

Close
Stability Cables

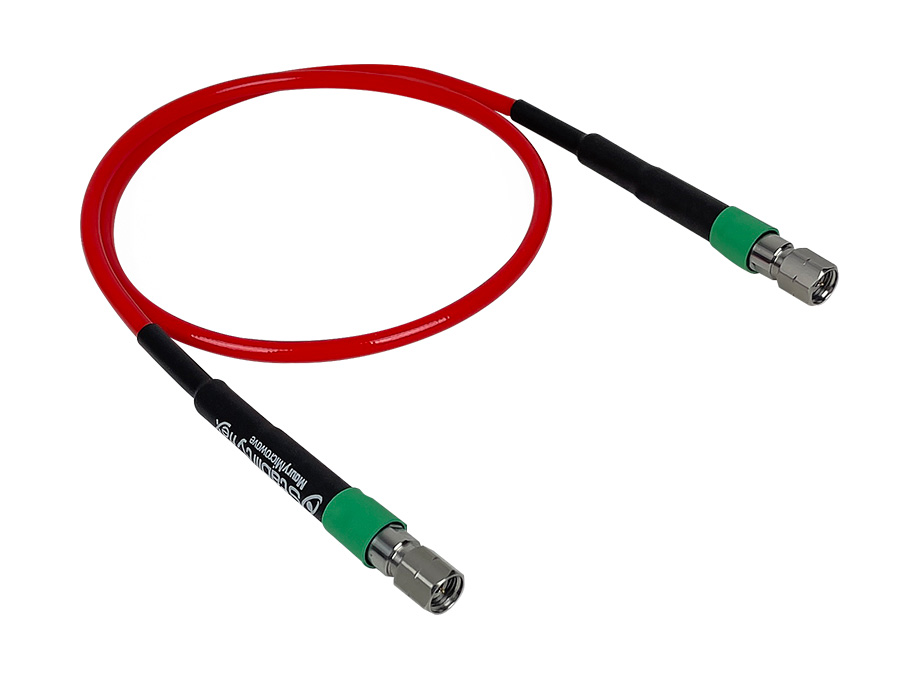

StabilityFlex Low Profile Ultra-Flexible Cable Assembly

StabilityFlex™ ultra-flexible cable assemblies (SF-series) are the industry’s best flexible daily-use lab cable assembly. Designed for general testing applications, StabilityFlex™ offers excellent value with its high flexibility and low cost, as well as low insertion loss, and excellent return loss, and its amplitude and phase stability with flexure. StabilityFlex™ is the ideal assembly for reliable and repeatable measurements when used with microwave & RF test instrumentation, including benchtop testing and automated test (ATE) systems. StabilityFlex™ employs color-coded connectors to reduce potential for connection mistakes and is available with SMA, Type N, 2.92mm and 2.4mm connectors up to 50 GHz.

Request a quoteRequest a demo

Datasheet - StabilityFlex

Datasheet - Cable Comparison

Brochure

Specifications

Frequency Range

Typical VSWR

Insertion Loss

Typical Phase Stability with Flexure

Flex Life Cycles

DC to 50 GHz

1.25:1 to 1.30:1

0.60 dB/ft to 1.49 dB/ft

3 to 8 degrees

10,000



Features & Benefits

  • Ultra-flexible
  • Excellent value
  • Low insertion loss
  • Reliable and repeatable measurements
  • Amplitude and phase stable with flexure
  • High mating-cycle durability
  • Color-coded connectors

Filters

Connector 1

Connector 2

Crush Resistance (Lbf/in)

Flex Life Cycles

Frequency Range (GHz)

Gender 1

Gender 2

Insertion Loss (dB/ft)

Length (in)

VSWR (Typical)

Name Connector 1Connector 2Crush Resistance (Lbf/in)Flex Life CyclesFrequency Range (GHz)Gender 1Gender 2Insertion Loss (dB/ft)Length (in)VSWR (Typical)
SF-24-MM-24-LP 2.4mm2.4mm80>10,000DC-50MaleMale1.49241.30:1
SF-24-MM-36-LP 2.4mm2.4mm80>10,000DC-50MaleMale1.49361.30:1
SF-24-MM-48-LP 2.4mm2.4mm80>10,000DC-50MaleMale1.49481.30:1
SF-24-MM-60-LP 2.4mm2.4mm80>10,000DC-50MaleMale1.49601.30:1
SF-24-MM-72-LP 2.4mm2.4mm80>10,000DC-50MaleMale1.49721.30:1
SF-24292-MM24LP 2.4mm2.92mm80>10,000DC-40MaleMale1.31241.25:1
SF-24292-MM36LP 2.4mm2.92mm80>10,000DC-40MaleMale1.31361.25:1
SF-24292-MM48LP 2.4mm2.92mm80>10,000DC-40MaleMale1.31481.25:1
SF-24292-MM60LP 2.4mm2.92mm80>10,000DC-40MaleMale1.31601.25:1
SF-24292-MM72LP 2.4mm2.92mm80>10,000DC-40MaleMale1.31721.25:1
SF-292-MM-24-LP 2.92mm2.92mm80>10,000DC-40MaleMale1.31241.25:1
SF-292-MM-36-LP 2.92mm2.92mm80>10,000DC-40MaleMale1.31361.25:1
SF-292-MM-48-LP 2.92mm2.92mm80>10,000DC-40MaleMale1.31481.25:1
SF-292-MM-60-LP 2.92mm2.92mm80>10,000DC-40MaleMale1.31601.25:1
SF-292-MM-72-LP 2.92mm2.92mm80>10,000DC-40MaleMale1.31721.25:1
SF-N-MM-12-LP Type NType N80>10,000DC-18MaleMale0.6121.25:1
SF-N-MM-24-LP Type NType N80>10,000DC-18MaleMale0.6241.25:1
SF-N-MM-36-LP Type NType N80>10,000DC-18MaleMale0.6361.25:1
SF-N-MM-48-LP Type NType N80>10,000DC-18MaleMale0.6481.25:1
SF-N-MM-60-LP Type NType N80>10,000DC-18MaleMale0.6601.25:1
SF-N-MM-72-LP Type NType N80>10,000DC-18MaleMale0.6721.25:1
SF-N-MM-78-LP Type NType N80>10,000DC-18MaleMale0.6781.25:1
SF-SMA-MM-12-LP SMASMA80>10,000DC-26.5MaleMale0.77121.25:1
SF-SMA-MM-24-LP SMASMA80>10,000DC-26.5MaleMale0.77241.25:1
SF-SMA-MM-36-LP SMASMA80>10,000DC-26.5MaleMale0.77361.25:1
SF-SMA-MM-48-LP SMASMA80>10,000DC-26.5MaleMale0.77481.25:1
SF-SMA-MM-60-LP SMASMA80>10,000DC-26.5MaleMale0.77601.25:1
SF-SMA-MM-72-LP SMASMA80>10,000DC-26.5MaleMale0.77721.25:1
SF-SMA-MM-78-LP SMASMA80>10,000DC-26.5MaleMale0.77781.25:1
SF-SMAN-MM-12-LP SMAType N80>10,000DC-18MaleMale0.6121.25:1
SF-SMAN-MM-24-LP SMAType N80>10,000DC-18MaleMale0.6241.25:1
SF-SMAN-MM-36-LP SMAType N80>10,000DC-18MaleMale0.6361.25:1
SF-SMAN-MM-48-LP SMAType N80>10,000DC-18MaleMale0.6481.25:1
SF-SMAN-MM-60-LP SMAType N80>10,000DC-18MaleMale0.6601.25:1
