StabilityPlus Low Profile Cables Series

Close
Stability Cables

StabilityPlus Low Profile Cables Series

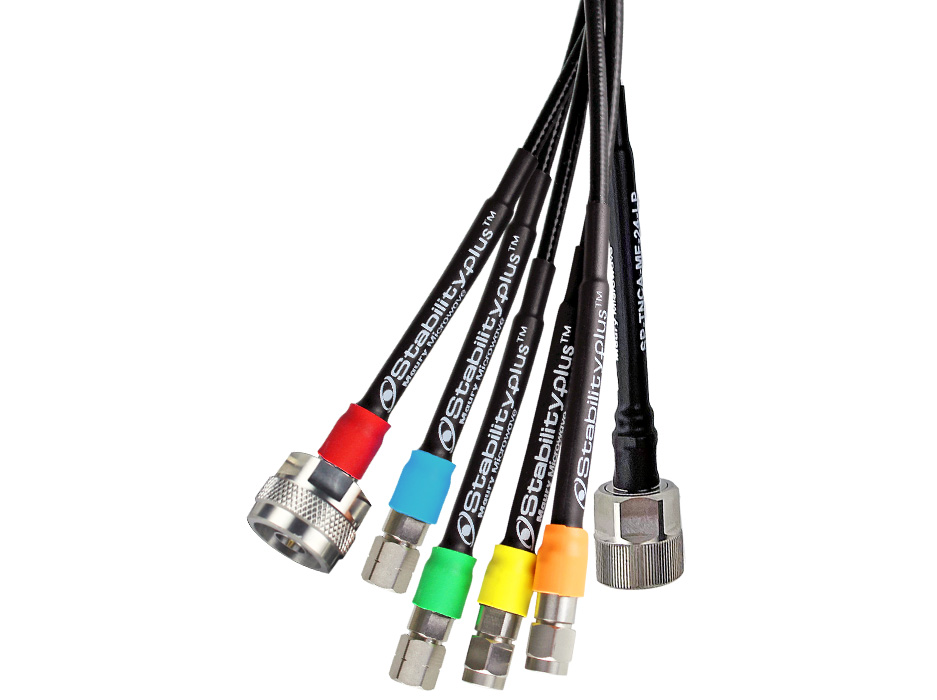

StabilityPlus™ Low Profile phase-stable cable assemblies (SP-LP-series) set the standard for high-performance low-profile microwave/RF cable assemblies. StabilityPlus’™ Low Profile shares the same industry-leading electrical performance as StabilityPlus™, and its light weight, superior flexibility and small form factor make it ideal for daily use with high-density (i.e., PXI, switch matrices…) and fragile (i.e., soft substrate materials) applications. StabilityPlus™ Low Profile employs color-coded connectors to reduce potential for connection mistakes and is available with TNCA, SMA, Type N, 7mm, 3.5mm, 2.92mm, 2.4mm and 1.85mm connectors up to 67 GHz.

Request a quoteRequest a demo

Datasheet - StabilityPlus Low Profile

Datasheet - Cable Comparison

Brochure

Specifications

Frequency Range

Typical VSWR

Insertion Loss

Typical Phase Stability with Flexure

Flex Life Cycles

Crush Resistance

DC to 67 GHz

1.10:1 to 1.20:1

0.61 dB/ft to 1.79 dB/ft

2 to 6 degrees

15,000

23 lbf/in



Features & Benefits

  • Stable and repeatable electrical performance
  • Small profile for tight spacing requirements
  • Flexible to facilitate easy installation
  • Lightweight for use with smaller DUTs
  • Color-coded connectors to avoid damage caused by connector mismates

Filters

Connector 1

Connector 2

Connector Mating Cycles

Crush Resistance (Lbf/in)

Flex Life Cycles

Frequency Range (GHz)

Gender 1

Gender 2

Insertion Loss (dB/ft)

Length (in)

Name Connector 1Connector 2Connector Mating CyclesCrush Resistance (Lbf/in)Flex Life CyclesFrequency Range (GHz)Gender 1Gender 2Insertion Loss (dB/ft)Length (in)
SP-185-MF-24-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleFemale1.7924
SP-185-MF-36-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleFemale1.7936
SP-185-MF-48-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleFemale1.7948
SP-185-MM-12-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleMale1.7912
SP-185-MM-24-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleMale1.7924
SP-185-MM-36-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleMale1.7936
SP-185-MM-48-LP 1.85mm1.85mm>5,00023>15,000DC-67MaleMale1.7948
SP-24-MF-24-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleFemale124
SP-24-MF-36-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleFemale136
SP-24-MF-48-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleFemale148
SP-24-MM-12-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleMale112
SP-24-MM-24-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleMale124
SP-24-MM-36-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleMale136
SP-24-MM-48-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleMale148
SP-24-MM-60-LP 2.4mm2.4mm>5,00023>15,000DC-50MaleMale160
SP-24292-FM24LP 2.4mm2.92mm>5,00023>15,000DC-40FemaleMale0.8924
SP-24292-FM36LP 2.4mm2.92mm>5,00023>15,000DC-40FemaleMale0.8936
SP-24292-FM48LP 2.4mm2.92mm>5,00023>15,000DC-40FemaleMale0.8948
SP-24292-MM24LP 2.4mm2.92mm>5,00023>15,000DC-40MaleMale0.8924
SP-24292-MM36LP 2.4mm2.92mm>5,00023>15,000DC-40MaleMale0.8936
SP-24292-MM48LP 2.4mm2.92mm>5,00023>15,000DC-40MaleMale0.8948
SP-292-MF-24-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8924
SP-292-MF-36-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8936
SP-292-MF-48-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8948
SP-292-MM-12-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8912
SP-292-MM-24-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8924
SP-292-MM-36-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8936
SP-292-MM-48-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8948
SP-292-MM-60-LP 2.92mm2.92mm>5,00023>15,000DC-40MaleMale0.8960
SP-35-MF-24-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleFemale0.7224
SP-35-MF-36-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleFemale0.7236
SP-35-MF-48-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleFemale0.7248
SP-35-MF-60-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleFemale0.7260
SP-35-MM-12-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleMale0.7212
SP-35-MM-24-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleMale0.7224
SP-35-MM-36-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleMale0.7236
SP-35-MM-48-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleMale0.7248
SP-35-MM-60-LP 3.5mm3.5mm>5,00023>15,000DC-26.5MaleMale0.7260
SP-SMA-MM-12-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7212
SP-SMA-MM-24-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7224
SP-SMA-MM-36-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7236
SP-SMA-MM-48-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7248
SP-SMA-MM-60-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7260
SP-SMA-MM-72-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7272
SP-SMA-MM-78-LP SMASMA>5,00023>15,000DC-26.5MaleMale0.7278
SP-TNCA-MM-36-LP TNCATNCA>5,00023>15,000DC-18MaleMale0.6136
SP-TNCA-MM-48-LP TNCATNCA>5,00023>15,000DC-18MaleMale0.6148
SP-TNCA-MM-60-LP TNCATNCA>5,00023>15,000DC-18MaleMale0.6160
SP-TNCA-MM-72-LP TNCATNCA>5,00023>15,000DC-18MaleMale0.6172
SP-TNCA-MM-78-LP TNCATNCA>5,00023>15,000DC-18MaleMale0.6178
