Power Meters
4240 Series

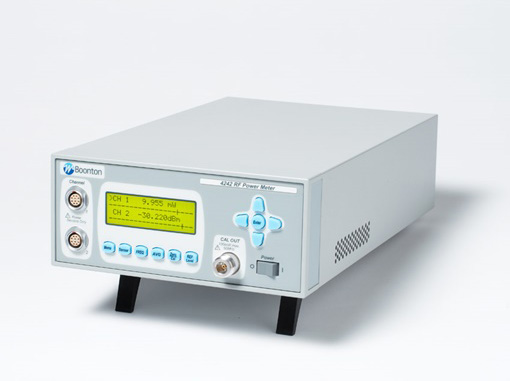

The 4240 series of CW RF power meters provides the high speed measurement capability needed in a production environment, as well as the simplicity of operation required for bench top use. It provides very accurate measurements from -70 dBm to +44 dBm (sensor dependent) and has a rapid display update rate for tuning applications. The easy to read LCD displays both channels simultaneously with numeric and bar graph information.
Key Features
Models
Options
Accessories
Specifications
Frequency Range
Power Range
Dynamic Range
Measurement Speed
Step Calibrator
10 kHz to 40 GHz (sensor dependent)
-70 dBm to +44 dBm (sensor dependent)
90 dB (sensor dependent)
>200 measurements per second
50 MHz
Features & Benefits
- Single or dual-channel display
- Agilent HP 437 & Agilent HP 438, and Boonton 4220A & 4230A emulation
- Automatically loads sensor data
- Simple software control via SCPI language
- IEEE-488 and RS-232 interfaces standard
- 4241: Single Channel
- 4242: Dual Channel
- -01: Rear sensor inputs
- -02: Calibrator, rear panel output
- -30: Warranty extended to 3 years
Accessories Required
One or more of the available power sensors is required to be ordered along with 4240 series, 5 ft power sensor cable Model 41-2A and one sensor data adapter (one per sensor included).
Accessories Available
| 41-2A/10 | Sensor/Probe Interconnecting Cable (10 ft). A special low-noise cable that connects the power sensor to the power meter. |
| 41-2A/20 | Sensor/Probe Interconnecting Cable (20 ft) |
| 41-2A/50 | Sensor/Probe Interconnecting Cable (50 ft) |
| 41-2A/100 | Sensor/Probe Interconnecting Cable (100 ft) |
| 95004701A | F/F Adapter, 41-2A |
| 95004901A | Bulkhead Connector F/F |
| 95403001A | Rack Mounting Kit 4241 Single Channel |
| 95005901A | Rack Slide Kit 4242 Dual Channel |
| 95109001A | Sensor Data Adapter |
| 95006001A | Transit case Holds the 4240 series & up to 4 sensors |
