RF Volt Meters
9240 Series

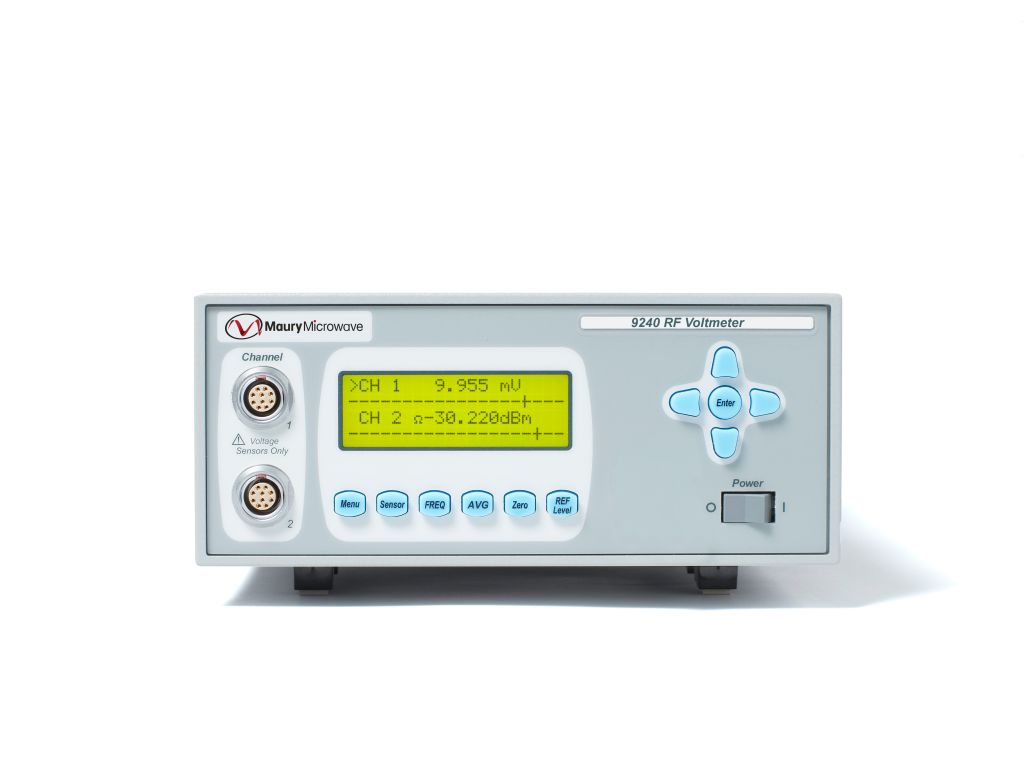

The 9240 series is the latest addition to the popular 9200 series of RF voltmeters. It combines accuracy, smart probes, and operator features that have never before been available in its price range. It is simple to use on the bench, and comprehensive enough to integrate into an ATE system. Boonton’s proven voltage probes directly measure from 200 μV to 10 V with usable indication as low as 50 μV and have true RMS response below 30 mV.
Key Features
Models
Options
Accessories
Specifications
Frequency Range
Voltage Range
10 Hz to 1.2 GHz (probe dependent)
200 μV to 300 V
Features & Benefits
- Dual-channel and differential voltage measurements
- 1% accuracy at full scale
- True RMS response below 30 mV
- Optional low-frequency probe for measurements from 10 Hz to 100 MHz
- DC recorder output
- IEEE-488 interface standard, RS-232
- 9241: Single-input channel
- 9242: Dual-input channels. Allow display of channels 1 and 2 and ratio of channels expressed in dB

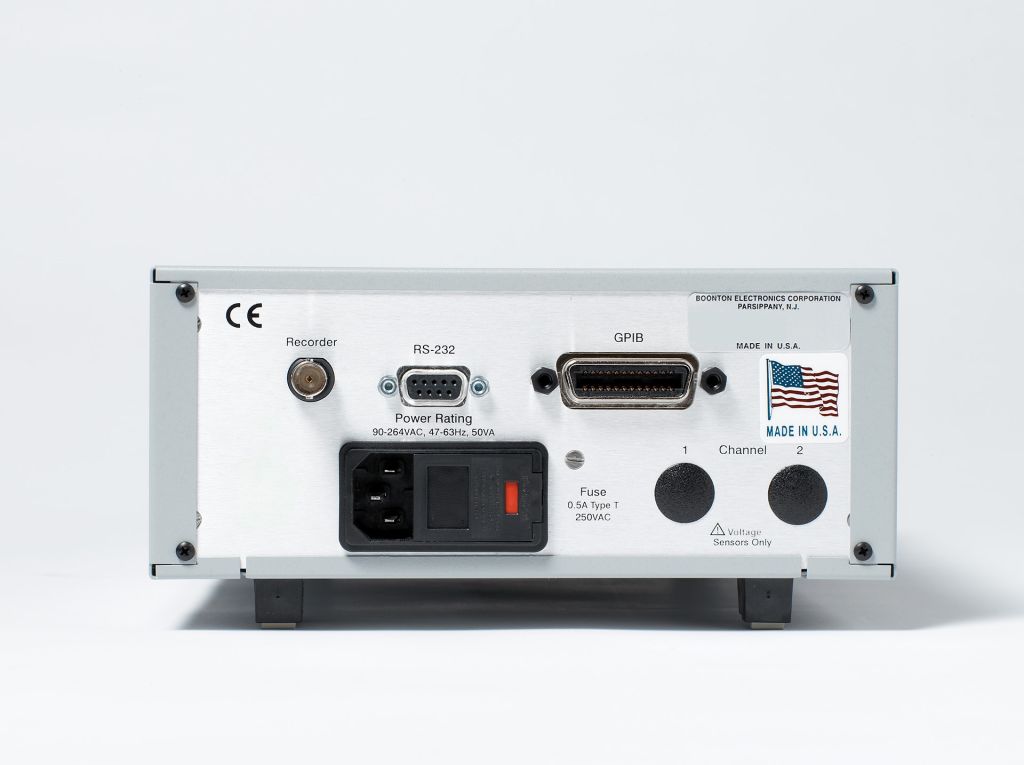

- -01: Rear panel inputs
- -02: Warranty extension to 3 years
- 95403001A: Rack mounting kit
- 95109001A: Sensor data adaptor
Accessories Required
One or more of the available probe kits with sensor data adapter is required (one per probe included) to be ordered along with 9240 series.
Accessories Available
| 41-2A/10 | Sensor/Probe Interconnecting Cable (10 ft) A special low-noise cable that connects the power sensor to the power meter. |
| 41-2A/20 | Sensor/Probe Interconnecting Cable (20 ft) |
| 41-2A/50 | Sensor/Probe Interconnecting Cable (50 ft) |
| 41-2A/100 | Sensor/Probe Interconnecting Cable (100 ft) |
| 95004701A | F/F Adapter, 41-2A |
| 95004901A | Bulkhead Connector F/F |
| 95403001A | Rack Mounting Kit 4241 Single Channel |
| 95005901A | Rack Slide Kit 4242 Dual Channel |
| 95109001A | Sensor Data Adapter |
| 95006001A | Transit case (Holds the 4240 series & up to 4 sensors) |
