USB Power Meters
PMX40 Series

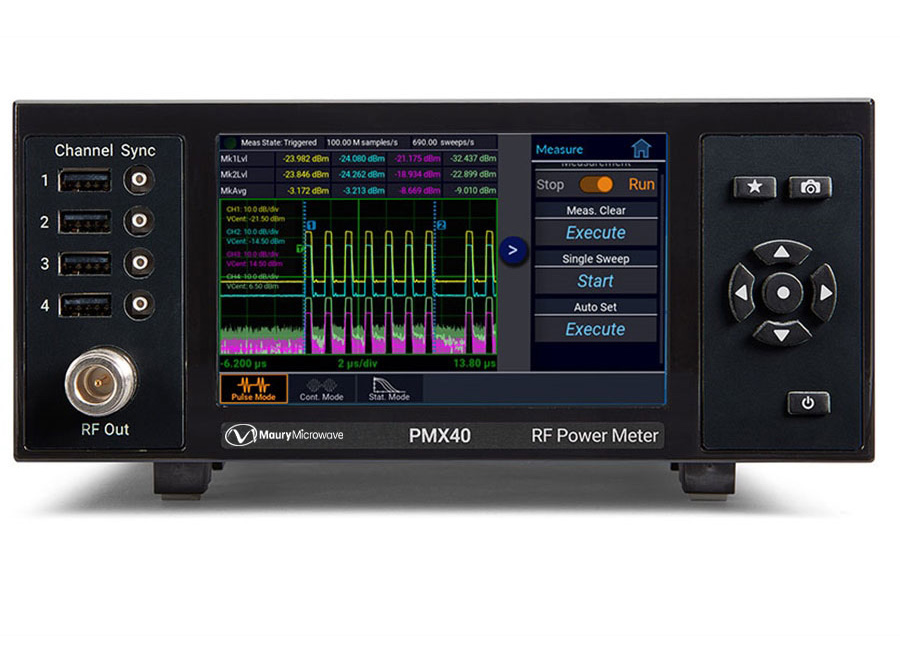

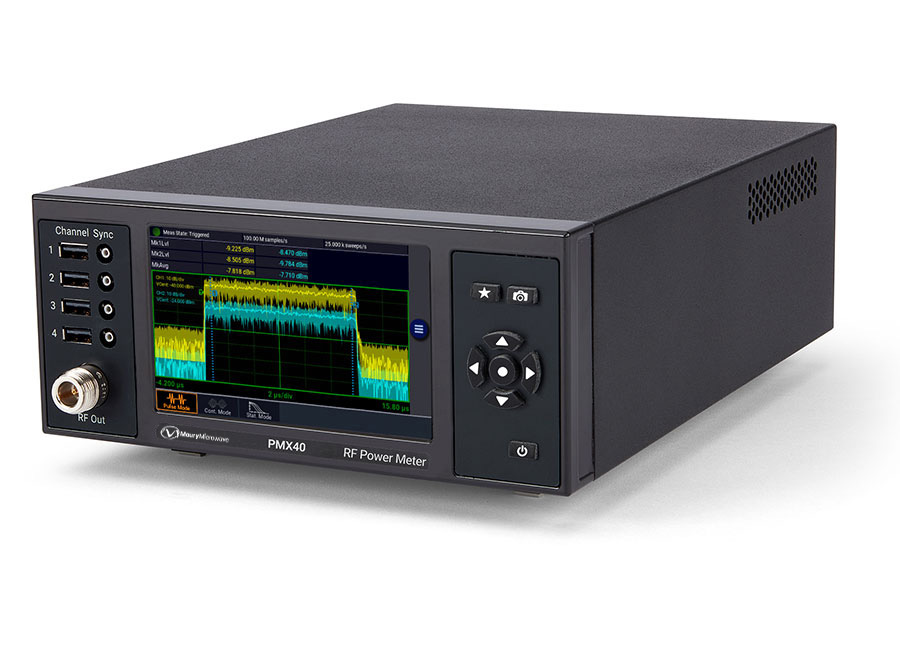

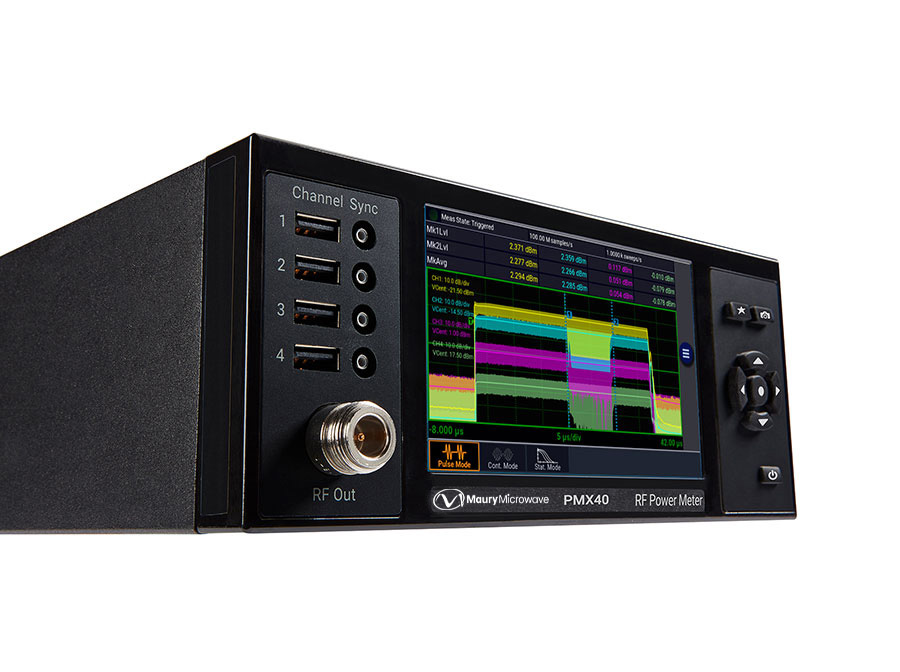

The PMX40 provides design engineers and technicians the utility of traditional benchtop instrument, the flexibility and performance of modern USB RF power sensors, and the simplicity of a multi-touch display built with Boonton award-winning technology.
As a benchtop meter, the PMX40 provides a standalone solution for capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains through an intuitive, multi-touch touchscreen display.

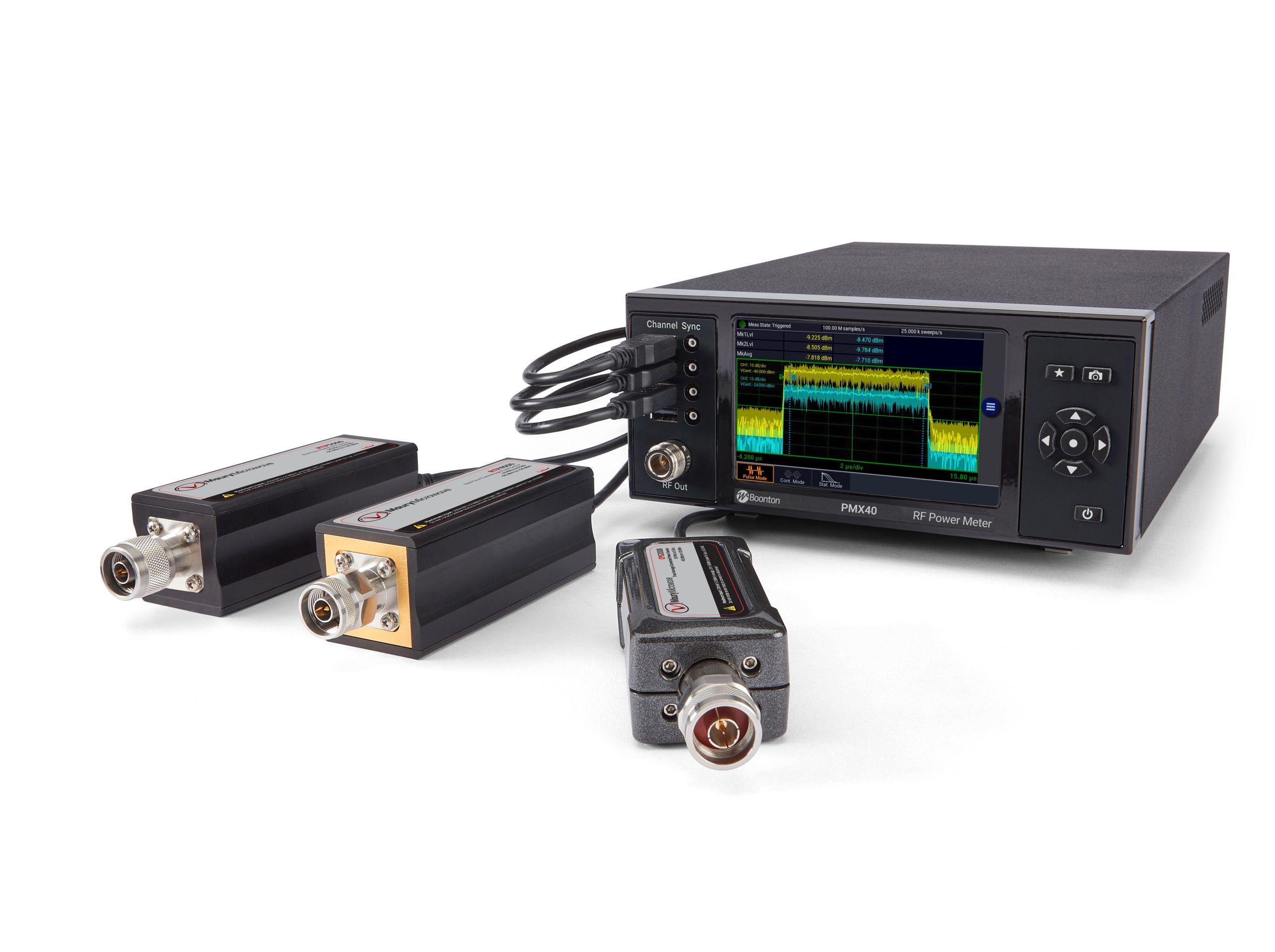

The PMX40 Power Meter utilizes up to four RTP and CPS families of USB RF power sensors with industry-leading performance and capabilities either independently or for synchronized multi-channel measurements of CW, modulated, and pulsed signals.
Providing the ultimate flexibility, the PMX40 sensors can be disconnected and independently used as standalone instruments.
Key Features
Models
Options
Accessories
Specifications
Frequency Range
Video Bandwidth
Rise Time
Measurement Speed
Time Resolution
4 kHz to 40 GHz
195 MHz
3 ns
100,000 measurements per second
100 ps
Features & Benefits
- Capture/display/analyze peak and average power
- Frequency range from 4 kHz to 40 GHz
- Industry-leading video bandwidth (195 MHz) and rise time (3 ns)
- Industry-leading 100,000 measurements per second
- Industry-leading 100 ps time resolution
- Synchronous multi-channel measurements (up to 4 channels)
- Sensors can be used as standalone instruments
- PMX40-4CH: Adds 2 Active Channels (for a total of 4)

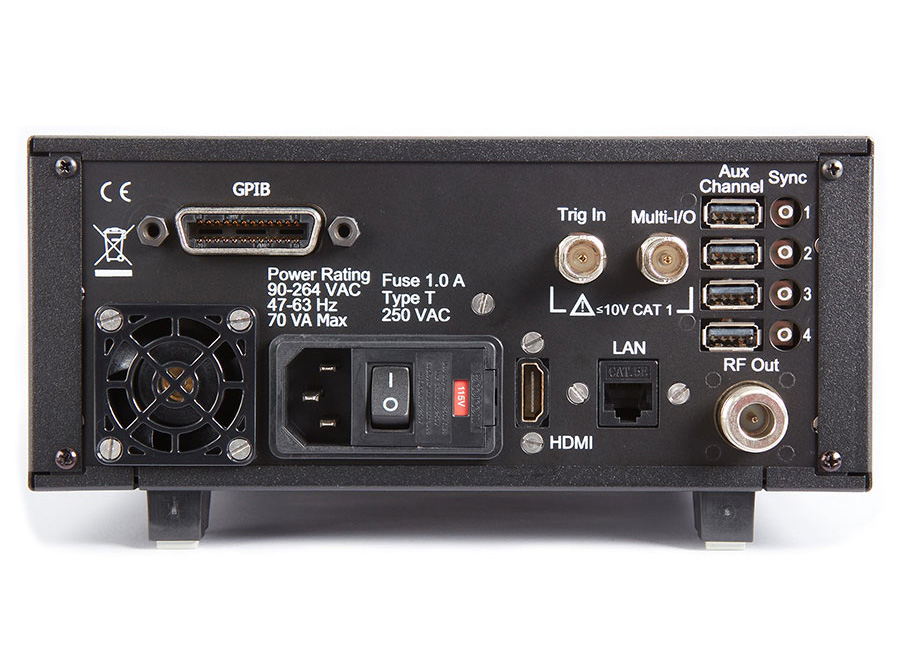

- PMX40-GPIB: GPIB Control (internally installed)
- PMX40-RTS: Moves Test Source output to the rear panel
- PMX40-RMK: Full-width 19” Rack Mount Kit (includes handles & hardware for mounting one or two meters)
- PMX40-TCASE: Transit case, hold the PMX40 and up to 4 sensors
