Programmable Noise Generators

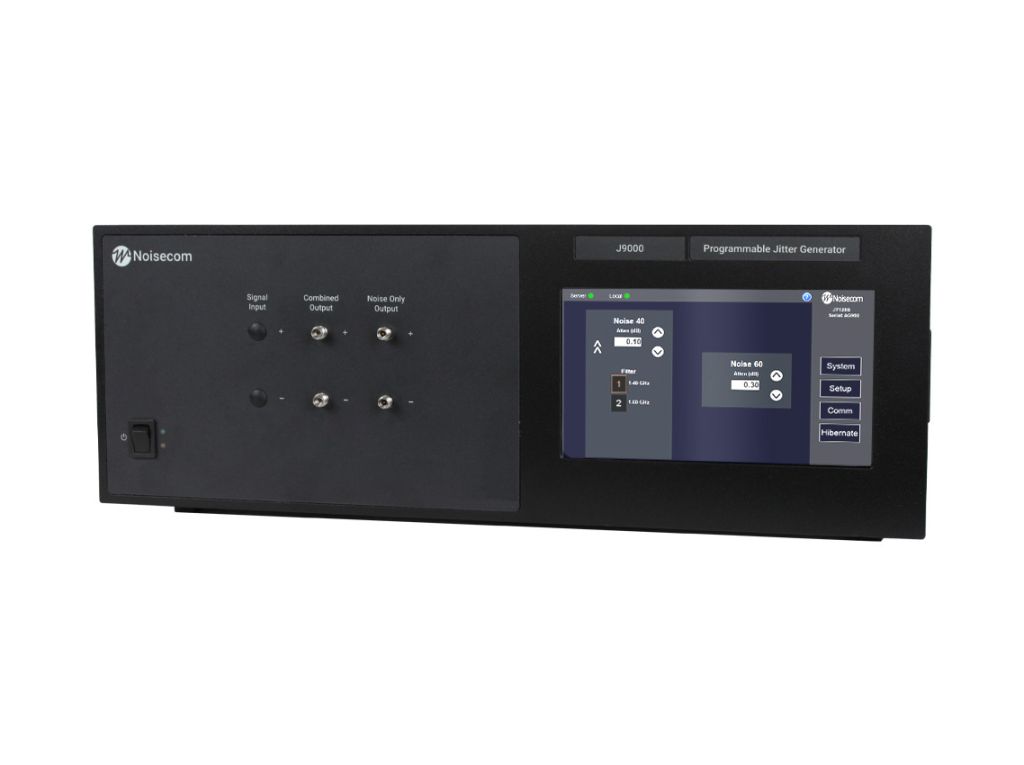

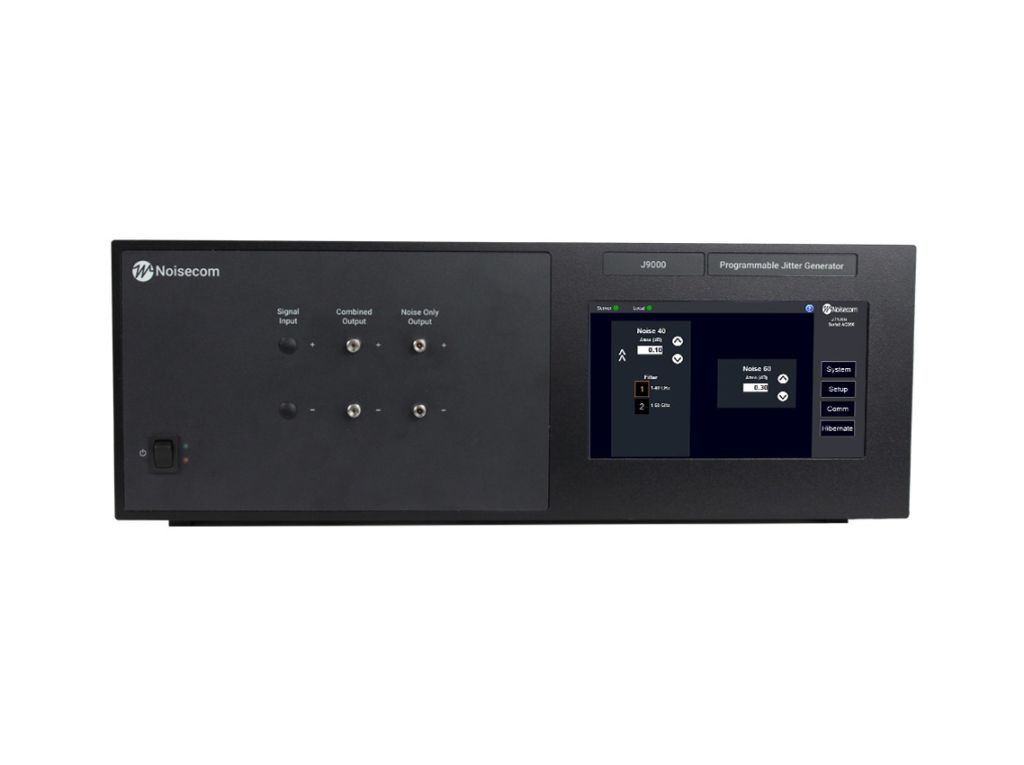

J7000B Series
The J7000B jitter noise generator generates additive white Gaussian noise (AWGN) with a large crest factor to model “real world” random jitter. This random jitter is commonly referred to as Rj in the industry accepted jitter hierarchy model and managing Rj is critical to the performance and capability of high-speed communication busses and devices. Today’s high-speed digital circuit designers are challenged with narrow jitter tolerances to deliver high data rates with low bit error rate (BER). Designing a system that is not only compliant to industry specifications but also robust enough to handle jitter and maintain an acceptable bit error rate is a never ending challenge and only gets harder as frequency and data rate increase.
Key Specifications
Models
Options
Specifications
Output
Min Crest Factor
Output Noise Power
Noise Attenuation
Noise Attenuator
Signal Path Gain
White Gaussian noise
18 dB
-3 dBm (+/- 0.5 dBm)
0 to 63 dB in 0.1 dB steps up to 2 GHz
±0.2 dB or 0.5%
0 ±1 dB
Features & Benefits
- Ultra-low distortion signal path
- Standard connectors SMA female
- 7” touch screen display
- Dimensions: 17.22 in. wide x 6.30 in. including feet, high x 19.5 in. deep
- Fold-down feet for bench top use
- Power 115 VAC, 60 Hz
- Operating Temperature: -10° to +65°C
- Differential inputs and outputs
- Multiple differential inputs and outputs
- Jopt03: 230 VAC, 50 Hz
- Jopt04: Switch up to 5 filter inputs
- Jopt05: 127 dB signal attenuator in 1 dB steps
- Jopt06: DC coupled signal path (6 dB RF Loss)
- Jopt07: IEEE-488 interface remote control
- Jopt08: Optional 19” rack mount brackets
- Jopt09: Custom frequency, power or flatness requirement Jopt10 Differential Outputs
