Cryogenic Impedance Tuner Series

Close
Cryogenic Tuner

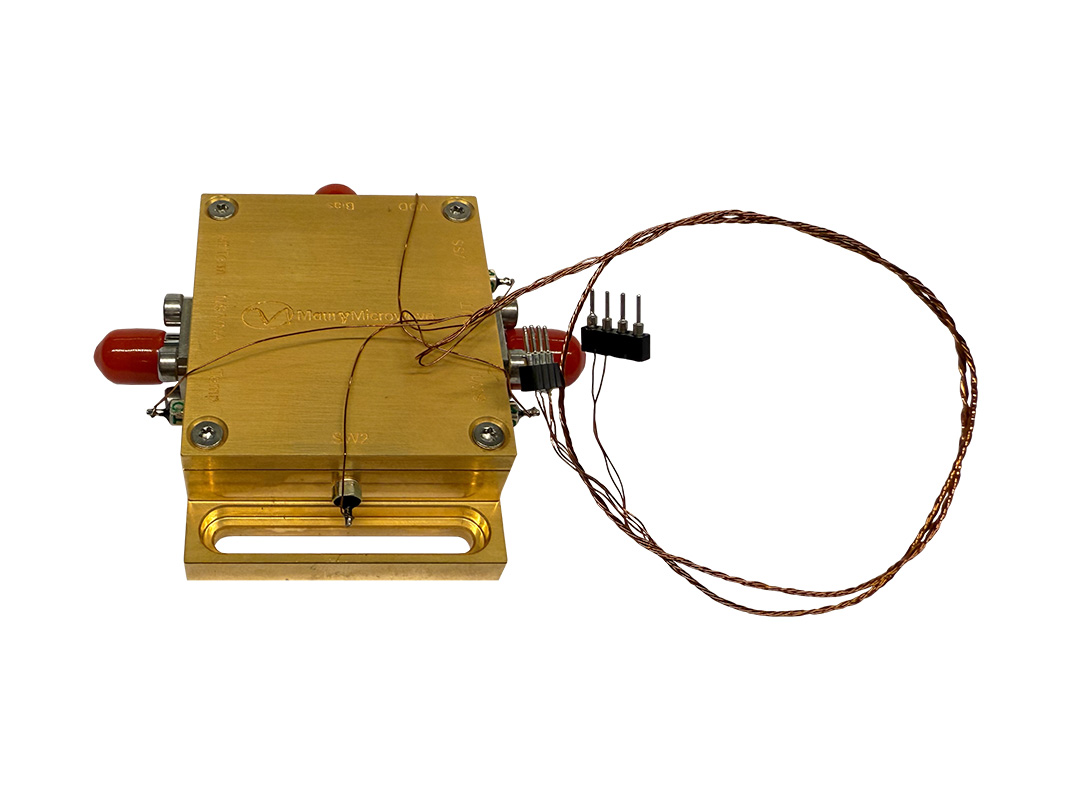

Cryogenic Impedance Tuner Series

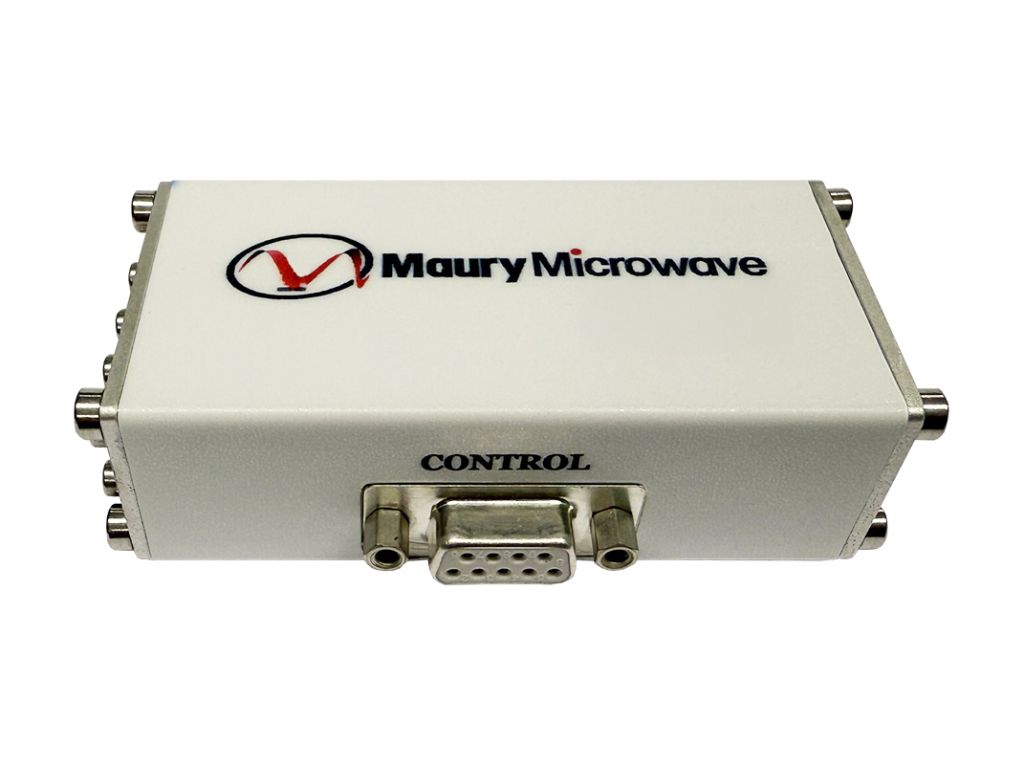

The CT-series cryogenic automated tuner is driven by an external controller, which connects to the tuner through included wiring, and is USB-controlled via direct SCPI commands.

Request a quoteRequest a demo

Datasheet

Brochure

Specifications

Frequency Range

Impedance States

p1dB (dBm)

Repeatability

Integrated Bias Tee

2-18 GHz

4

30

-60dB

Max current = 270mA Irms Max voltage = 10V



Features & Benefits

  • Solid-state automated impedance tuner designed for use down to 4K

  • Perform noise parameters (NP) measurements on unmatched transistor or existing LNA

  • Evaluate noise and gain circles and determine the best impedance match that meets design requirement

  • Build matching network that optimizes LNA performance

Filters

Connector 1

Frequency Range (GHz)

Insertion Loss (dB)

Repeatability (dB)

Return Loss (dB)

Name Connector 1Frequency Range (GHz)Insertion Loss (dB)Repeatability (dB)Return Loss (dB)
CT-2G-18G SMA (f)2-182-12 GHz: 3 dB typ; 12-18 GHz: 9.5 dB max-602-4 GHz: 20/15; 4-18 GHz: 15/18
Discover more

Related Products

Automated Tuner Series

Learn more

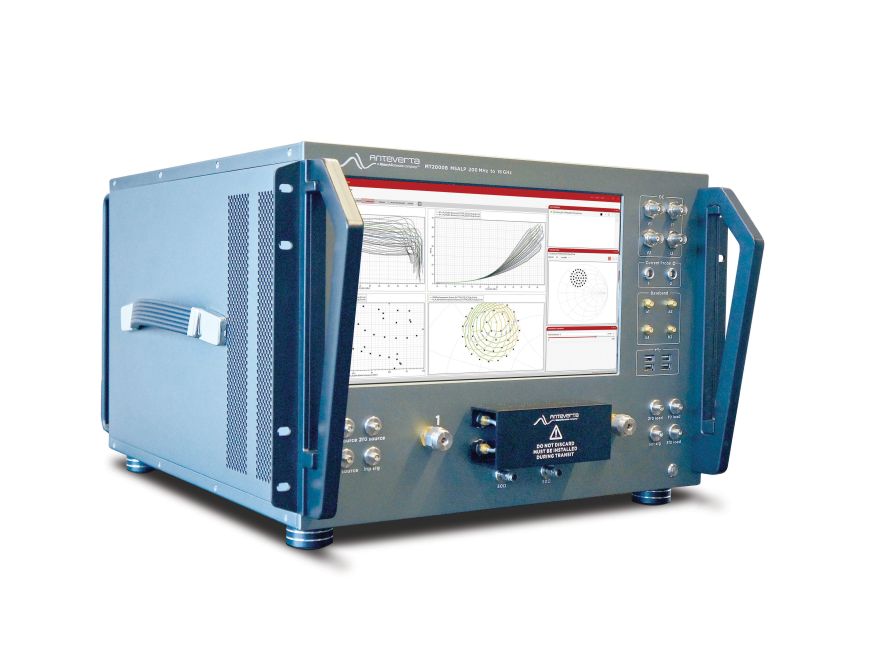

MT1000-MT2000 Series
