Automated Impedance Tuner Series

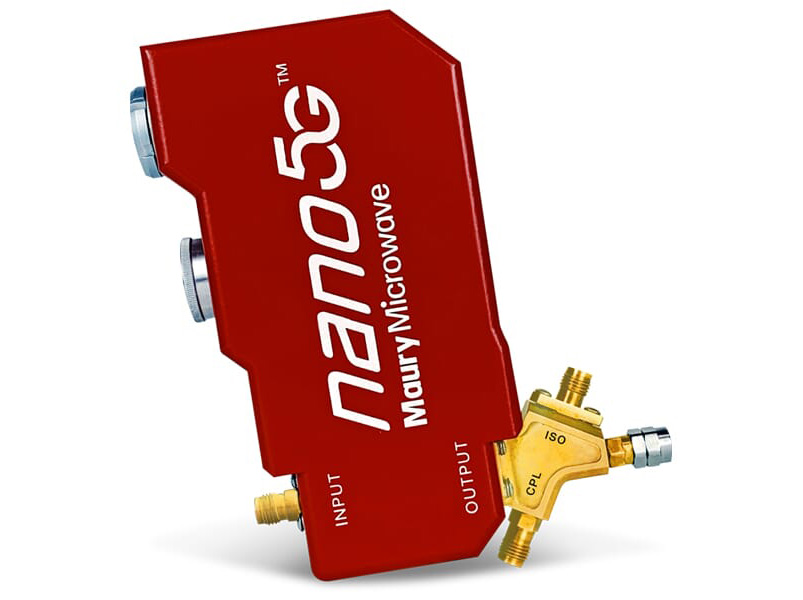

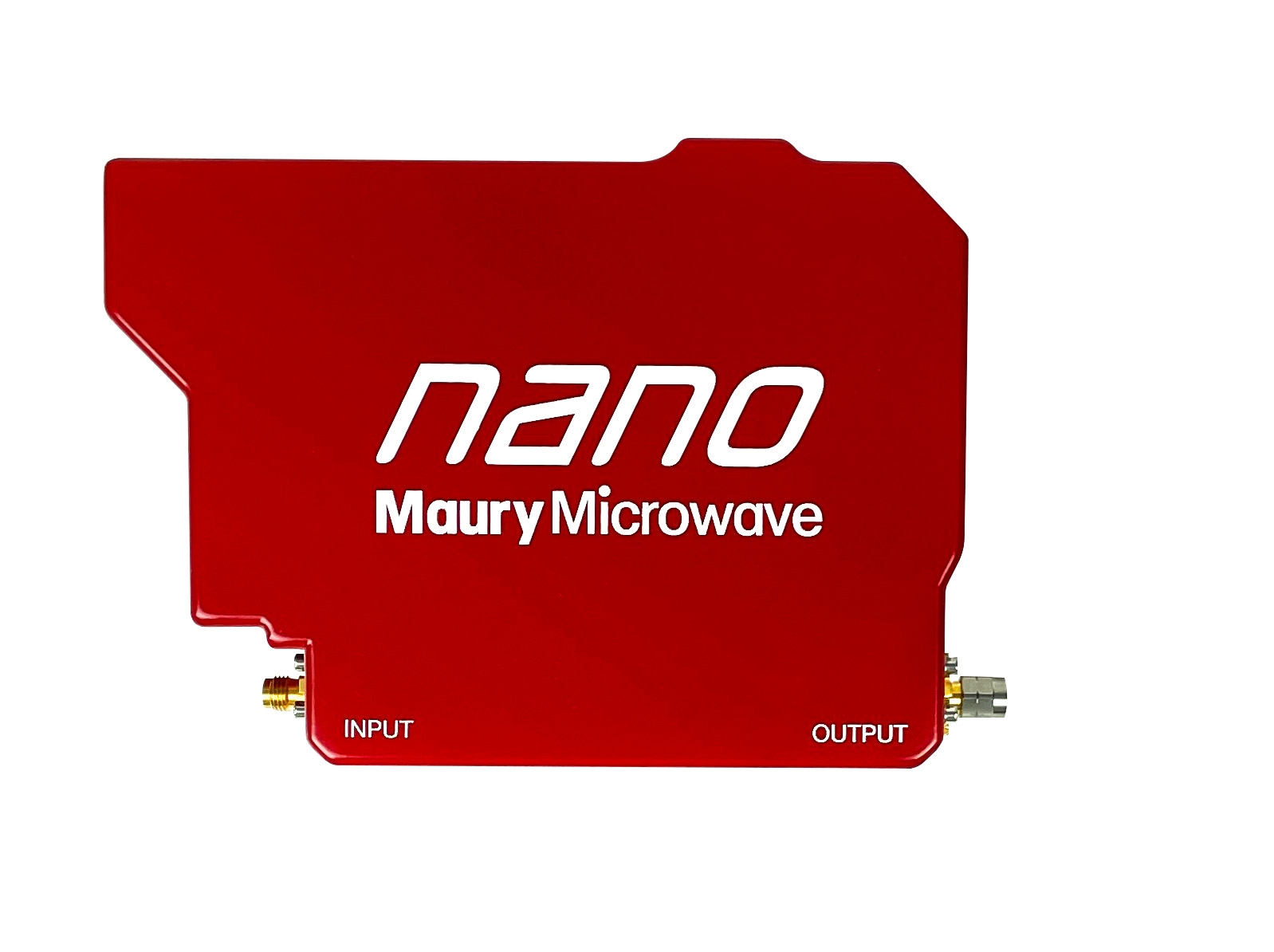

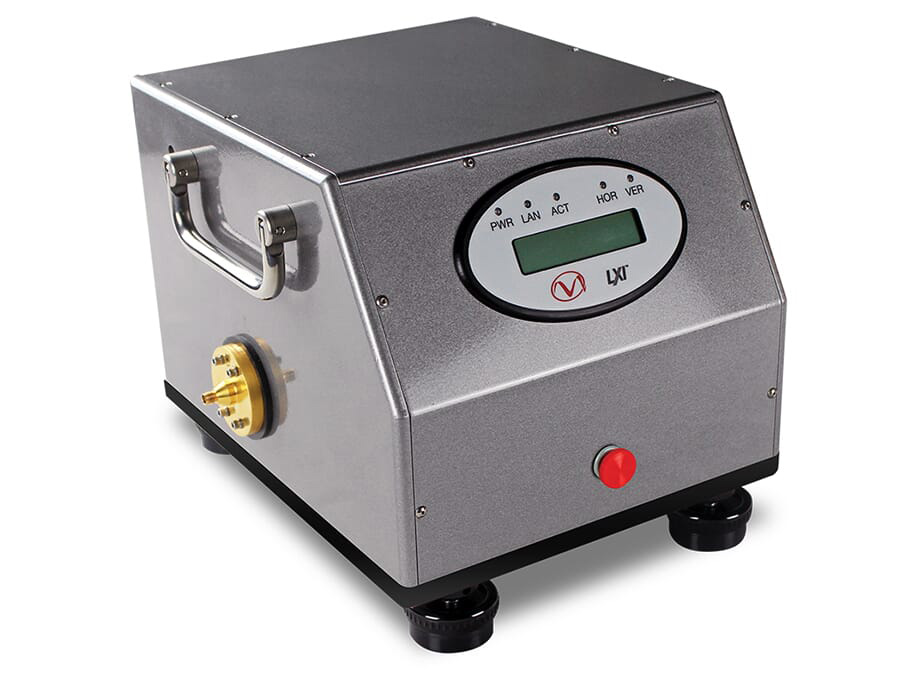

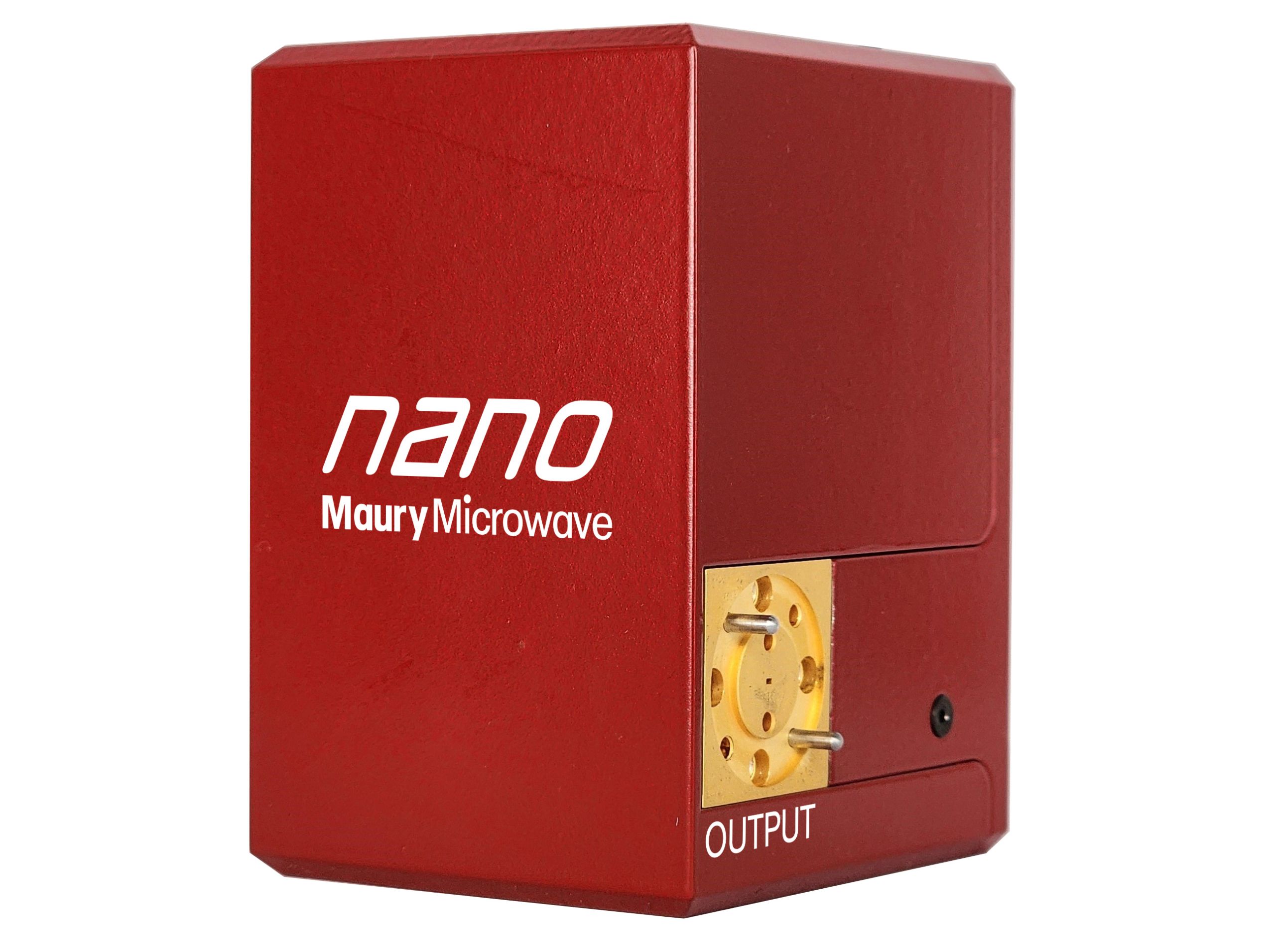

As leaders of the first commercial automated tuners Maury Microwave continues to innovate and expand our portfolio. Our XT-series tuners represent the next evolution in tuner technology. Faster, more accurate and more repeatable impedance control ideal for device characterization, VSWR sweeps, our maximizing power transfer from a generator to the load. Our NT-series tuners have been designed for on-wafer applications with maximum VSWR at the probe tip.




Specifications
Frequency Range
Matching Range
Power Handling
Repeatability
Harmonic Control
225 MHz to 330 GHz
up to 200:1
up to 250W CW/2.5W PEP
up to -50dB
up to 3Fo
Features & Benefits
Up to X2 faster mechanical movement vs prev. generation
Up to -50 dB repeatability
High Gamma (up to 200:1)
High power handling (250W CW/2.5kW PEP)
New tuner characterization validation process using MTune3
New non-harmonically related multi-frequency impedance tuning using MTune3
Filters
Name | Connector 1 | Connector 2 | Frequency Range (GHz) | Insertion Loss (dB) | Matching Range (Minimum) | Matching Range (Typical) | Power Handling (CW, W) | Repeatability (dB) | Gender 1 | Gender 2 |
---|---|---|---|---|---|---|---|---|---|---|
MT977AL | WR15 | WR15 | 50-75 | 0.35 | 20:1 | 30:1 | 20 | -40 | - | - |
MT978AL | WR12 | WR12 | 60-90 | 0.5 | 20:1 | 30:1 | 20 | -40 | - | - |
MT979AL | WR10 | WR10 | 75-110 | 0.6 | 20:1 | 30:1 | 20 | -40 | - | - |
MT984AL01 | 2.4mm | 2.4mm | 8-50 | 0.6 | 10:1 | 20:1 | 10 | -40 | Male | Female |
MT985AL01 | 1.85mm | 1.85mm | 8-65 | 1.15 | 10:1 | 20:1 | 10 | -40 | Male | Female |
NT-110G-170G-1C | WR6.5 (WR6) | WR6.5 (WR6) | 110-170 | 0.5 | 20:1 | 35:1 | 10 | -40 | - | - |
NT-140G-220G-1C | WR5.1 (WR5) | WR5.1 (WR5) | 140-220 | 0.65 | 12:1 | 14:1 | 10 | -40 | - | - |
NT-170G-260G-1C | WR4.3 (WR4) | WR4.3 (WR4) | 170-260 | 1 | 18:1 | 27:1 | 10 | -40 | - | - |
NT-18G-50G-1C | 1.85mm | 1.85mm | 18-50 | 0.5 | 10:1 | 40:1 @ 28, 39 GHz | 10 | -40 | Male | Female |
NT-18G-50G-1C-C | 1.85mm | 1.85mm | 18-50 | 0.5 | 10:1 | 40:1 @ 28, 39 GHz | 10 | -40 | Male | Female |
NT-220G-330G-1C | WR3.4 (WR3) | WR3.4 (WR3) | 220-330 | 1.35 | 12:1 | 17:1 | 10 | -40 | - | - |
NT-8G-65G-1C | 1.85mm | 1.85mm | 8-65 | 1.2 | 10:1 | 17:1 | 10 | -40 | Male | Female |
NT-8G-65G-1C-C | 1.85mm | 1.85mm | 8-65 | 1.3 | 10:1 | 16:1 | 10 | -40 | Male | Female |
XT981AL14 | 7mm | 7mm | 0.225-4 | 0.3 | 15:1 | 25:1 | 250 | -50 | - | - |
XT981BL10 | 7mm | 7mm | 0.4-4 | 0.3 | 15:1 | 25:1 | 250 | -50 | - | - |
XT981BL18 | 7mm | 7mm | 0.4-8 | 0.3 | 10:1 | 25:1 | 250 | -40 | - | - |
XT981HL13 | 7mm | 7mm | 0.8-8 | 0.3 | 0.8-6.5, 100:1, 6.5-8, 60:1 | 0.8-6.5, 200:1, 6.5-8, 100:1 | 250 | -40 | - | - |
XT981HL14 | 7mm | 7mm | 1.8-8 | 0.3 | 100:1 | 200:1 | 250 | -40 | - | - |
XT981HL15 | 7mm | 7mm | 0.65-6 | 0.3 | 100:1 | 200:1 | 250 | -40 | - | - |
XT981HL16 | 7mm | 7mm | 0.65-8 | 0.3 | 40:1 | 100:1 | 250 | -40 | - | - |
XT981ML01 | 7mm | 7mm | 0.65-8 | 0.3 | 100:1 | 40:1 | 250 | -50 | - | - |
XT981VL10 | 7mm | 7mm | 0.6-6.5 | 0.3 | 0.6-5.5, 40:1, 5.5-6.5, 25:1 | 50:1 | 250 | -50 | - | - |
XT982AL02 | 7mm | 7mm | 1.8-18 | 0.4 | 15:1 | 20:1 | 50 | -40 | - | - |
XT982GL01 | 7mm | 7mm | 0.6-18 | 0.5 | 10:1 | 18:1 | 50 | -40 | - | - |
XT982GL30 | 7mm | 7mm | 0.6-8 | 0.5 | 0.6-2, 30:1, 2-8, 15:1 | 0.6-2, 40:1, 2-8, 20:1 | 50 | -40 | - | - |
XT982ML01 | 7mm | 7mm | 0.6-18 | 0.8 | 100:1 | 40:1 | 50 | -40 | - | - |
XT982ML03 | 7mm | 7mm | 0.8-18 | 1 | 100:1 | 40:1 | 50 | -40 | - | - |
XT983BL01 | 3.5mm | 3.5mm | 2-26.5 | 0.6 | 10:1 | 15:1 | 25 | -40 | Male | Female |
XT983ML01 | 3.5mm | 3.5mm | 2-26.5 | 0.9 | 100:1 | 40:1 | 25 | -40 | Male | Female |
No products match your current filters.
